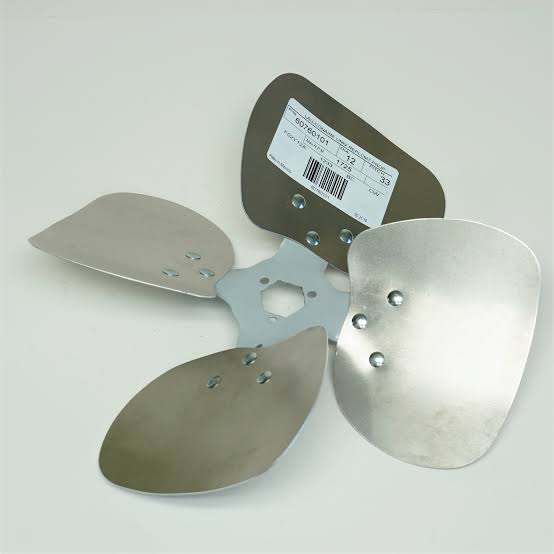

Lau Fan Blade 12" Clockwise 60760101

The Lau 60760101 is a 12 inch clockwise rotation axial fan blade used as a replacement propeller in small condensing units, compact condensers, and air cooled equipment with limited cabinet space.

At 12 inches this is one of the smaller diameters in the condenser fan range, suited to small tonnage residential units, compact commercial refrigeration condensers, and equipment where cabinet dimensions restrict blade size. Smaller blades generally turn at higher speeds to move a comparable volume of air, which places more importance on hub security and balance.

The hub bore and setscrew arrangement deserve attention on small blades. The bore must match the motor shaft diameter exactly, and the setscrew must seat on the shaft flat where one is provided. A setscrew tightened onto a round shaft section can allow the blade to creep during starting and stopping, gradually working loose until the blade shifts position or separates from the shaft entirely.

Blade position on the shaft also matters. The blade must sit within the fan orifice at the depth specified by the equipment manufacturer, since a blade positioned too far in or out loses a measurable percentage of its airflow.

Confirm diameter, rotation, pitch, wing count, and bore diameter against the original before ordering. Check for cracks around the hub during service.

Brand

Lau

SKU

60760101

Category

Fan Blades

Weight

1.6 lbs

Dimensions

12.00" x 12.00" x 2.80"

Price

$41.00

Availability

In stock

Rating

0 / 5.0
