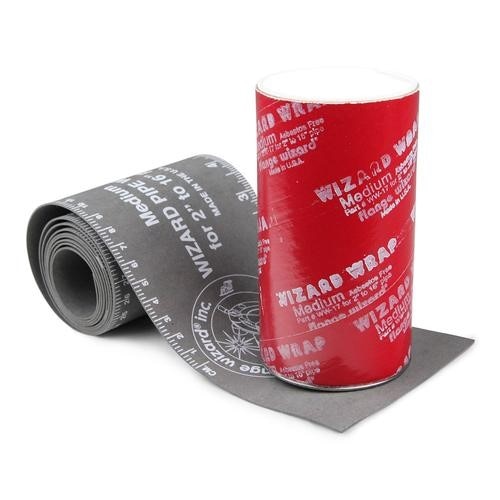

Flange Wizard FLWWW-17 Pipe Wrap Medium for pipes 2? to 16? in diameter

The Flange Wizard FLWWW-17 is a medium Wizard pipe wrap, for pipes 2 inch to 16 inch in diameter.

The 2 inch to 16 inch range makes this the broadest wrap in the family and, unsurprisingly, the general-purpose one. It spans small-bore work at the bottom end and reaches into the mid-range mains and headers that most industrial pipe fitting revolves around.

The wrap's job is to give a square line around a round pipe — which sounds trivial until you try to do it without one. A pipe offers no edge to reference and no flat to rest a square on. A line marked freehand around the circumference spirals, returning above or below its start, and a pipe cut to a spiral is cut out of square. That end will not seat against its fitting, and the resulting gap becomes a weld problem.

Wrapped around the pipe with its edges brought together, the wrap describes a true plane perpendicular to the axis. The fitter marks to it.

Wraps are consumables. They are used against cutting torches and grinders, they tear, they get thrown away — which is exactly why they belong on a counter display where a fitter grabs a replacement, and why the Flange Wizard wrap display carries this size ten deep.

Applications include pipe fitting, process piping, refineries, shipyards, and mechanical construction.

Users include pipefitters, welders, and fabricators.

Brand

Flange Wizard

SKU

FLWWW17

Category

Welding & Gas Supplies

Weight

0.67 lbs

Dimensions

17.00 x 1.50 x 0.12

Price

$40.00

Availability

Call for pricing

Rating

4.7 / 5.0
