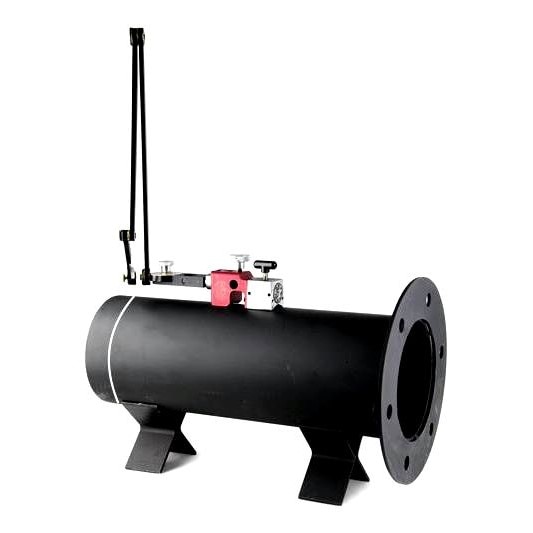

Flange Wizard FLWMML510 Master Marker

The Flange Wizard FLWMML510 is the Master Marker.

The Master Marker is a pipe and structural steel layout instrument built on Flange Wizard's on/off magnetic body, and it belongs to the family the company describes as replacing multiple templates. That phrase is the honest summary of its value. Traditional pipe layout runs on paper and cardboard templates — one for each pipe size, each angle, each fitting combination — kept in a drawer, torn, lost, and eventually wrong. An instrument that generates the layout mechanically replaces the drawer.

The magnetic body is what makes any of this work on pipe. Round surfaces offer nothing to clamp to and nothing to rest a tool against, and an on/off magnet holds the instrument on the curve, then releases without a fight.

The Master Marker shares its magnetic body with the Multi-Hole Imager, and the two are sold together as the MMC510 combo. If you expect to need both functions, the combo is the economical route — one magnetic body, two assemblies. The individual assemblies (MLA510 and MHA515) are available separately for anyone already holding the body.

Flange Wizard has manufactured measuring, marking, and cutting tools for pipe welding in the USA since 1981.

Applications include pipe fitting, process piping, structural steel, shipyards, refineries, and mechanical construction.

Users include pipefitters, welders, fabricators, and layout personnel.

Brand

Flange Wizard

SKU

FLWMML510

Category

Welding & Gas Supplies

Weight

5 lbs

Dimensions

5.50 x 3.50 x 1.25

Price

$290.00

Availability

Call for pricing

Rating

4.15 / 5.0
