Flange Wizard FLWMMC510 Master Marker and Imager Combo Kit

The Flange Wizard FLWMMC510 is the Master Marker and Imager combo kit — two complete tools in one case.

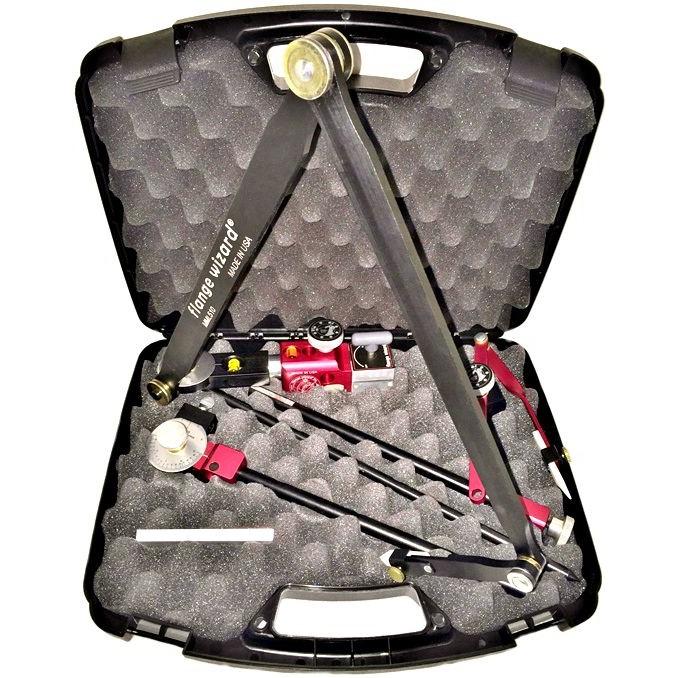

The combo includes the Master Marker Arm Assembly (#MLA510), the Multi-Hole Imager Tower Assembly (#MHA515), a 150 lb pull on/off magnetic body, and the #8900 carrying case.

The design logic is worth understanding because it is what makes this the sensible purchase. Both tools mount to the same magnetic body — that body is the expensive, heavy component, and it is identical for either function. Buying the Master Marker and the Multi-Hole Imager as separate complete tools means buying two magnetic bodies, carrying two of them, and paying twice for the same part. The combo supplies one body and both assemblies. The fitter swaps assemblies rather than tools.

What the two do together covers most of pipe layout. The Master Marker handles marking around pipe and structural steel. The Multi-Hole Imager handles round and elongated hole layout — the elliptical shapes that result when a branch intersects a pipe, which fitters otherwise address with a drawer full of paper templates.

The 150 lb pull magnet positions on round, flat, or irregular surfaces and releases cleanly.

Applications include pipe fitting, process piping, branch and saddle layout, shipyards, refineries, and mechanical construction.

Users include pipefitters, welders, fabricators, and layout personnel.

Brand

Flange Wizard

SKU

FLWMMC510

Category

Welding & Gas Supplies

Weight

5.5 lbs

Dimensions

5.50 x 3.50 x 1.25

Price

$380.00

Availability

In stock
