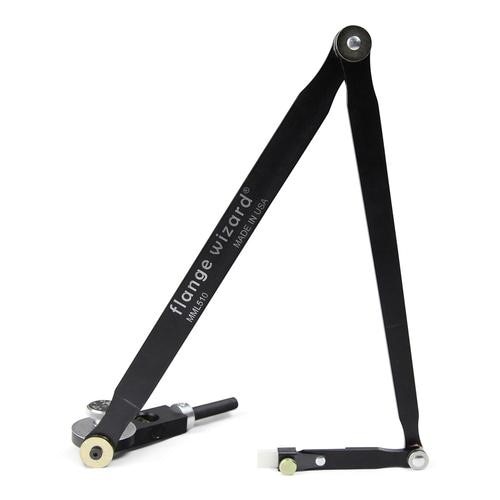

Flange Wizard FLWMLA510 Master Marker Arm Assembly

The Flange Wizard FLWMLA510 is the Master Marker arm assembly.

This is the arm portion of the Master Marker sold as a component rather than a complete tool, and it exists because of how Flange Wizard designed this range. The Master Marker family is modular: a common 150 lb pull on/off magnetic body accepts different assemblies, so the expensive magnet is bought once and the capability is added to it.

The MLA510 is the Master Marker's arm assembly — the marking mechanism that mounts to that body.

The reason to buy this rather than a complete tool is straightforward economics. A fitter who already owns a Multi-Hole Imager (MHI515) already owns the magnetic body it sits on. Adding the Master Marker arm assembly gives them both tools for considerably less than buying the second complete instrument, and it means one magnet body in the bag rather than two.

The MLA510 is a component of the Master Marker & Imager Combo (MMC510), which supplies it together with the Multi-Hole Imager Tower Assembly (MHA515), the magnetic body, and the 8900 carrying case.

Confirm compatibility with your existing magnetic body before ordering an assembly instead of a complete tool.

Applications include pipe and structural layout, process piping, shipyards, and mechanical construction.

Users include pipefitters, welders, fabricators, and layout personnel.

Brand

Flange Wizard

SKU

FLWMLA510

Category

Welding & Gas Supplies

Weight

1 lbs

Dimensions

5.50 x 3.50 x 1.25

Price

$150.00

Availability

Call for pricing

Rating

4 / 5.0
