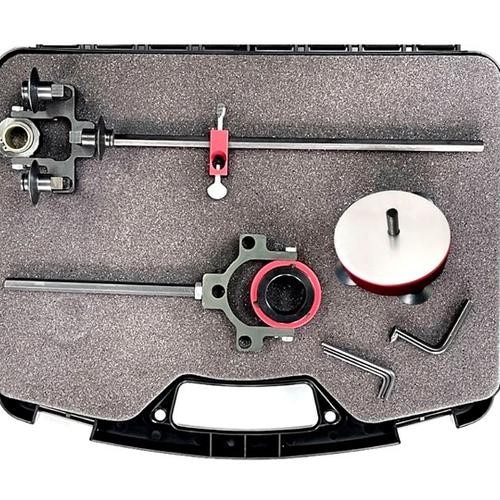

Flange Wizard FLW8920-P-1.070 Plasma Case

The Flange Wizard FLW8920-P-1.070 is the Deluxe Combo Burning Guide case, supplied with the 1.070 plasma bushing, in a case measuring 15 inches long by 10 inches wide by 3-1/2 inches deep.

Deluxe Combo is an accurate name: this case carries two cutting guides rather than one, and that is the reason to buy it over the 8910. It includes a Plasma Beveling Cutting Guide (#PBG-601-1.xxx) covering straight and radius cuts with hole burning from 3-1/4 inch to 39 inch diameter, plus a Chariot Beveling Burning Guide (#24219-CBG) covering straight and radius cuts with hole burning from 2 inch to 36 inch diameter, and a magnetic base with straight pin and suction cups (#77350) for larger holes and radiuses.

The two guides cover different ranges and that overlap is the point. The Plasma guide reaches to 39 inches; the Chariot starts at 2 inches. Between them the case handles circles from 2 inches to 39 inches, where either guide alone leaves a gap at one end. A shop cutting a genuine range of hole sizes needs both.

The -1.070 bushing suffix fits plasma torch heads from 1.030 to 1.068 inch. Verify your torch head diameter before ordering.

Applications include plate cutting, hole burning, weld joint preparation, structural fabrication, and shipyards.

Brand

Flange Wizard

SKU

FLW8920P1070

Category

Welding & Gas Supplies

Weight

4.4 lbs

Dimensions

16.00 x 7.00 x 3.50

Price

$300.00

Availability

Call for pricing

Rating

4.5 / 5.0
