Refrigerant recovery is often the most time-consuming part of any compressor replacement or system decommissioning. When a commercial rooftop has 25 pounds of R-410A or R-454B to recover, a slow recovery machine costs contractors hundreds of dollars in lost labor.

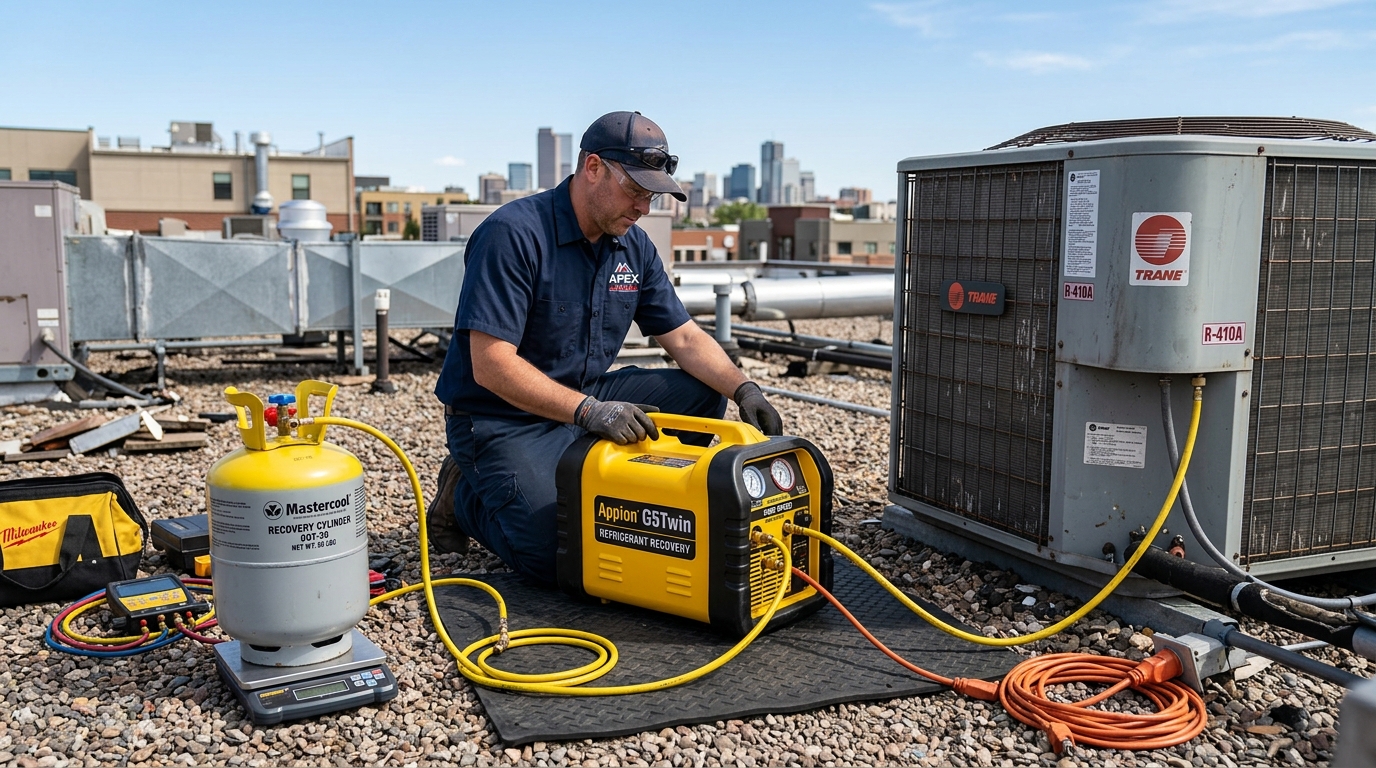

The Appion G5Twin has remained the gold standard in high-speed refrigerant recovery for over a decade. Here is why its internal architecture outpaces single-cylinder units.

1. Twin-Cylinder Opposed Compressor Design

Most entry-level recovery units use a single-cylinder compressor that struggles when pulling dense liquid refrigerant. The Appion G5Twin features twin opposed cylinders driven by a high-torque 1/2 HP motor, delivering balanced mechanical force and rapid throughput.

• Direct Liquid Recovery: Recovers liquid at up to 10.36 lbs/min (4.70 kg/min).
• Vapor Recovery: Pulls vapor at 0.62 lbs/min under standard AHRI 740 test conditions.
• Push-Pull Mode: Achieves speeds exceeding 15 lbs/min on large commercial systems.

2. Isolated Crankcase: Preventing Oil Breakdown & Motor Burnout

A major flaw in older recovery machines is that refrigerant and acid-laden compressor oil circulate through the recovery unit's crankcase, washing away bearing grease and leading to seizure.

Appion solves this with an isolated crankcase. The bearings and mechanical drive are completely sealed off from the refrigerant flow path. Refrigerant passes only through the precision-machined aluminum cylinder heads, ensuring long component life even during severe acid burnout cleanups.

3. A2L Refrigerant Compliance & Spark-Proof Operation

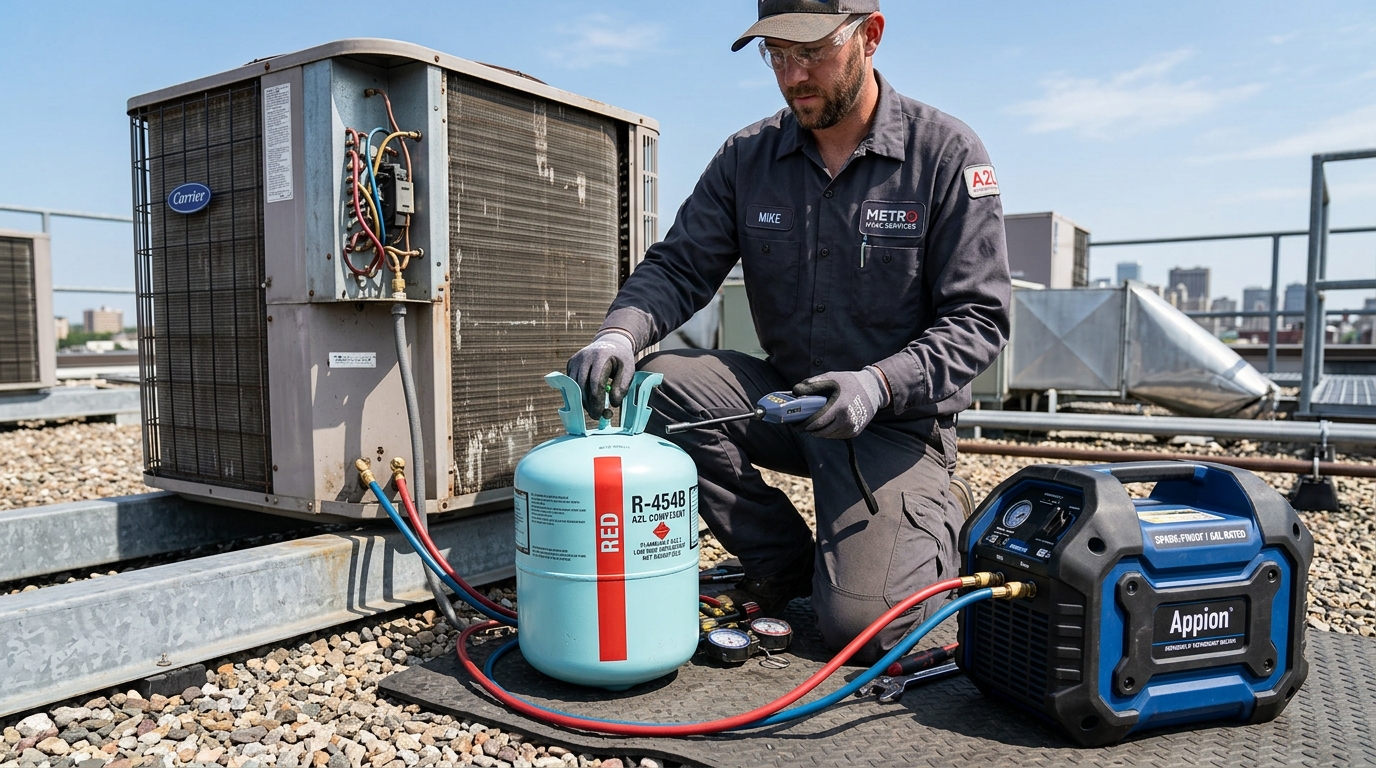

With the industry transitioning to mildly flammable A2L refrigerants like R-32 and R-454B, tool safety is non-negotiable. The G5Twin is certified for use with Class A2L refrigerants, featuring sealed electrical switches and high-velocity cooling airflow that prevents vapor accumulation within the housing.

Contractor Tip: Always use 3/8" or 1/2" high-flow recovery hoses without restrictive Schrader depressors when recovering refrigerant with the G5Twin. Using standard 1/4" hoses chokes the machine and doubles recovery time.

4. Field Serviceability in Under 20 Minutes

Even the best recovery machines require maintenance after thousands of pounds of refrigerant. The G5Twin is designed for rapid field rebuilding. With basic hand tools, a technician can replace the composite piston seals and stainless steel reed valves in less than 20 minutes without sending the unit to a service depot.

Order the genuine Appion G5Twin recovery unit, high-flow hoses, and OEM rebuild kits at Texpert Deals today.
