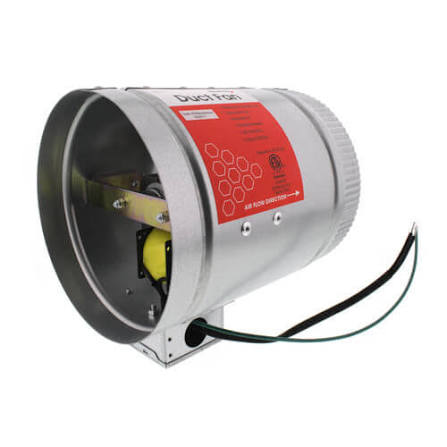

DiversiTech 6IN 240CFM Duct Fan 625-AF6

The DiversiTech 625-AF6 is a 6 inch inline duct fan rated at approximately 240 CFM, sized for single room ventilation and branch duct boosting.

Six inch duct is the standard branch size in residential systems, which makes this the fan most often reached for when a single room underperforms. A bedroom at the far end of a trunk, a room over a garage, a finished attic or basement space added after the original system was designed, or an addition served by a long extended run all present the same symptom: that outlet delivers noticeably less air than the others, and rebalancing the system to correct it starves everything else. Adding a boost fan to the affected branch alone resolves the problem without disturbing the rest of the distribution.

The second common use is remote exhaust. A bathroom, laundry, or small workshop fan mounted inline part way along the duct rather than at the grille moves the noise source away from the room, which is the main reason inline fans are specified in quiet spaces and hospitality applications.

At 240 CFM the fan suits a single room or a modest exhaust duty. Install in a straight section, support the duct on both sides, observe the airflow direction marking, and provide a suitable electrical connection.

Applications include residential branch boosting, bathroom and laundry exhaust, small workshops, and equipment closets.

Brand

DiversiTech

SKU

625-AF6

Category

Exhaust & Duct Fans

Weight

2.5 lbs

Dimensions

8.50" x 6.30" x 6.30"

Price

$55.00

Availability

In stock

Rating

0 / 5.0
