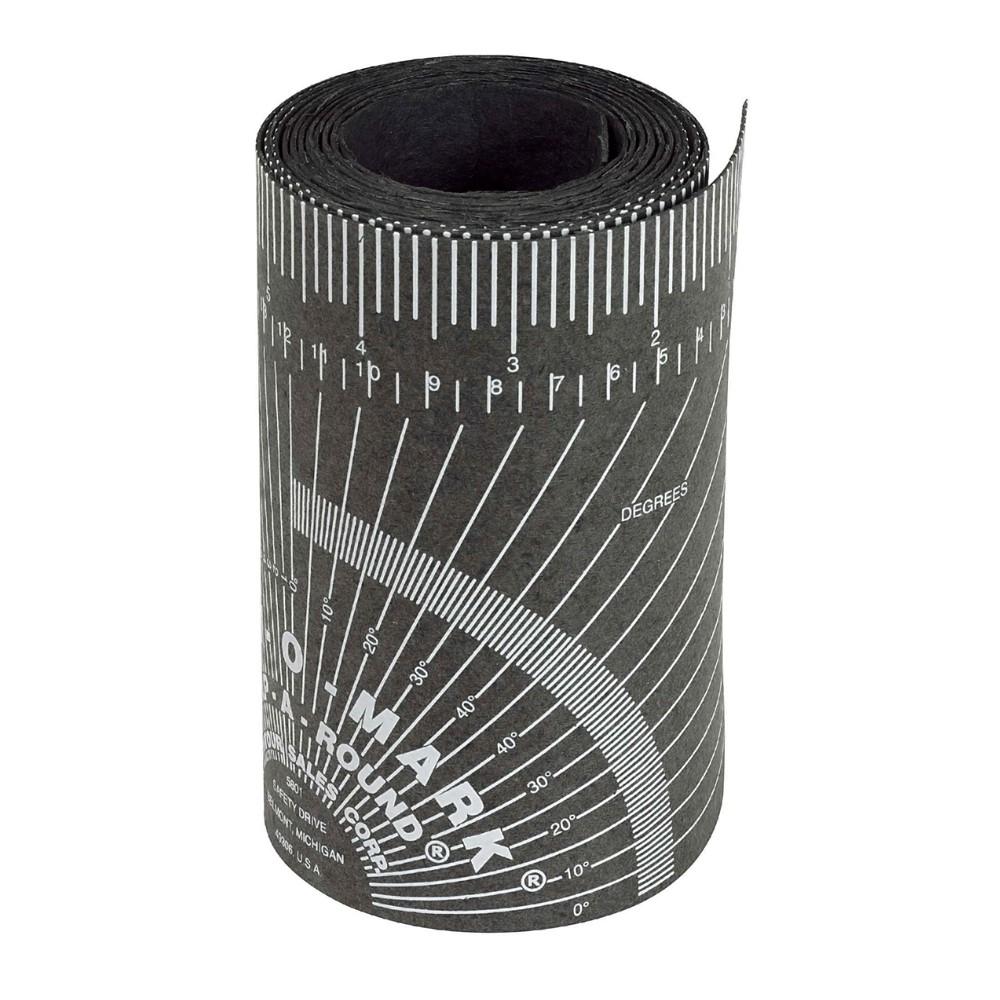

Jackson Safety JKS14752 Ruler Wrap-A-Round Medium 4 ft 3.88 Inch Black

The Jackson Safety JKS14752 is a Wrap-A-Round ruler, medium size, 4 ft long, 3.88 inch wide, black, for pipe diameters 3 inch to 6 inch.

A wrap-around is the answer to a geometric problem that has no other solution: you cannot mark a square line around a round pipe by eye. A pipe has no edge to reference and no flat to rest a square against. A line marked freehand around a circumference spirals — it returns above or below where it started — and a pipe cut to that line is cut out of square. An out-of-square end does not seat against its fitting, which becomes a gap, which becomes a bad weld.

Wrapped around the pipe with its edges aligned, the wrap's edge describes a true plane perpendicular to the pipe's axis. Mark to it and cut.

The pipe diameter range is the fitment specification and it is not optional. A wrap sized for 3 to 6 inch pipe will not reach around a 10 inch pipe, and on a 1 inch pipe it is unmanageable. Match the wrap to the pipe you actually work.

The 3.88 inch width gives a straightedge with enough body to be marked against.

Applications include pipe fitting, process piping, plumbing, and mechanical construction.

Brand

Jackson Safety

SKU

JKS14752

Category

Hand Tools

Weight

0.37 lbs

Dimensions

11.00 x 8.50 x 6.00

Price

$18.00

Availability

Call for pricing

Rating

4.34 / 5.0
