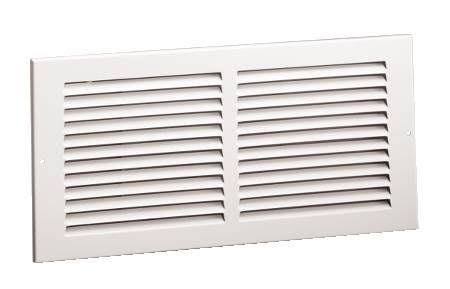

Hart & Cooley 672 30X20 043379 White Return Air Grille

The Hart & Cooley 43379 is a 672 series return air grille measuring 30 by 20 inches nominal, finished in white steel.

This is a large return grille, sized to carry a high airflow as a primary return on a substantial residential system or in light commercial work.

At this size the opening behind the grille becomes a significant element of the building fabric, and the transition from the opening to the return duct deserves attention. A large grille feeding a much smaller duct achieves nothing beyond a tidy appearance: the duct, not the grille, determines how much air the return can carry. This mismatch is common in retrofits where a larger grille is fitted to address a noise complaint without the duct behind it being altered. The noise at the grille improves, because face velocity has fallen, while the system's airflow problem remains entirely unchanged.

Sizing the return duct properly, and confirming the whole return path from grille to equipment, is what resolves a genuine return restriction.

The 672 series has no filter frame; the system filter is located at the air handler.

Applications include residential and light commercial return air installations in walls and ceilings. Overall face dimensions run larger than the nominal size, as the flange overlaps the opening.

Brand

Hart & Cooley

SKU

43379

Category

Return Air Grilles

Weight

6.2 lbs

Dimensions

31.75" x 21.75" x 0.31"

Price

$54.00

Availability

In stock

Rating

4.3 / 5.0
