More than 60% of all HVAC service calls originate as electrical failures: blown 3-amp control fuses, pitted contactor points, shorted 24V transformer secondaries, or damaged electronic inverter control boards. Having the right diagnostic leads and surge protection in place saves time and prevents expensive callbacks.

Here is how modern technicians troubleshoot complex HVAC electrical circuits with safety and accuracy.

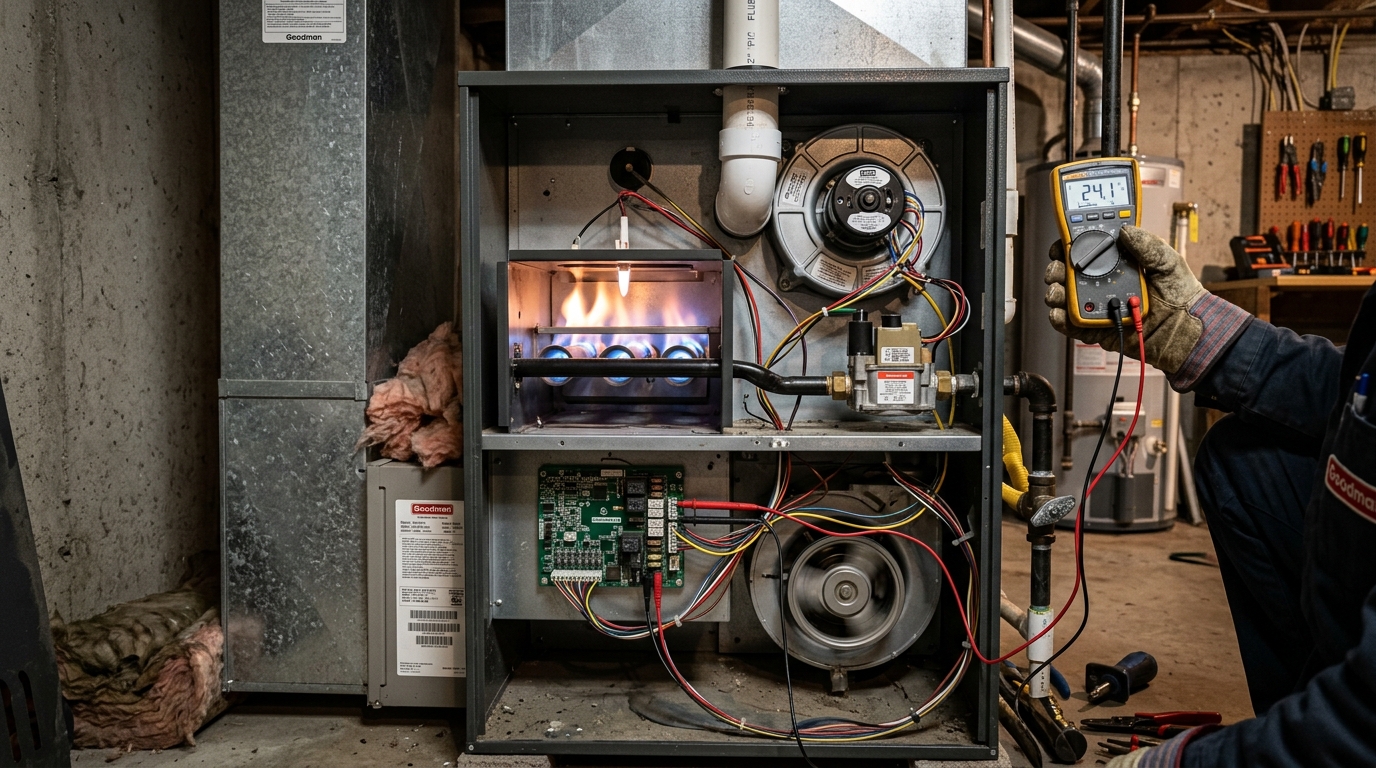

1. Low-Voltage 24V Short Circuit Isolation

When a furnace or air handler keeps blowing the 3A board fuse on a call for cooling or heating, never replace the fuse with a higher-amp rating. Use a resettable pop-out circuit breaker tool or test leads across the fuse holder.

• Disconnect the low-voltage thermostat wire bundle at the control board.
• Jumper R to G (Fan), R to W (Heat), and R to Y (Cooling) individually to isolate whether the short is located in the outdoor contactor coil, reversing valve solenoid, or thermostat wiring harness.
• Use Fieldpiece ADK7 / ADLS2 silicone test leads with high-friction alligator clips for hands-free voltage drop testing.

2. ECM Blower Motor Testing

Modern variable-speed ECM blower motors utilize permanent magnet rotors and electronic inverter modules. When an ECM motor fails to spin, 90% of failures are in the attached motor control module, not the mechanical stator.

1. Verify line voltage (120V or 240VAC) is present at the high-voltage harness.
2. Measure low-voltage DC control signals or 24VAC tap signals at the control plug.
3. Unplug the motor module and check resistance between the three motor phase pins (should read balanced 3.0 to 15.0 ohms with infinite resistance to ground).

3. Protecting Systems with ICM and Supco Surge Protectors

Modern high-efficiency HVAC equipment contains sensitive microprocessor boards, ECM motors, and variable-frequency drives (VFDs) that are vulnerable to grid transients and lightning strikes.

Contractor Recommendation: Installing an ICM517 100A Surge Protector or Supco LBK10 directly at the outdoor service disconnect absorbs voltage spikes up to 100,000 Amps, protecting the compressor and inverter board for the lifetime of the equipment.
