For decades, HVAC technicians relied on analog manifold gauges and temperature charts taped to their clipboard. While analog gauges are dependable, they introduce small inaccuracies, require manual calculation of superheat and subcooling, and release refrigerant into the atmosphere during hookup.

The Fieldpiece SMAN480V 4-Port Wireless Digital Manifold and the Fieldpiece Job Link System have revolutionized how technicians diagnose, charge, and commission residential and light commercial systems.

1. The 4-Port Manifold Architecture

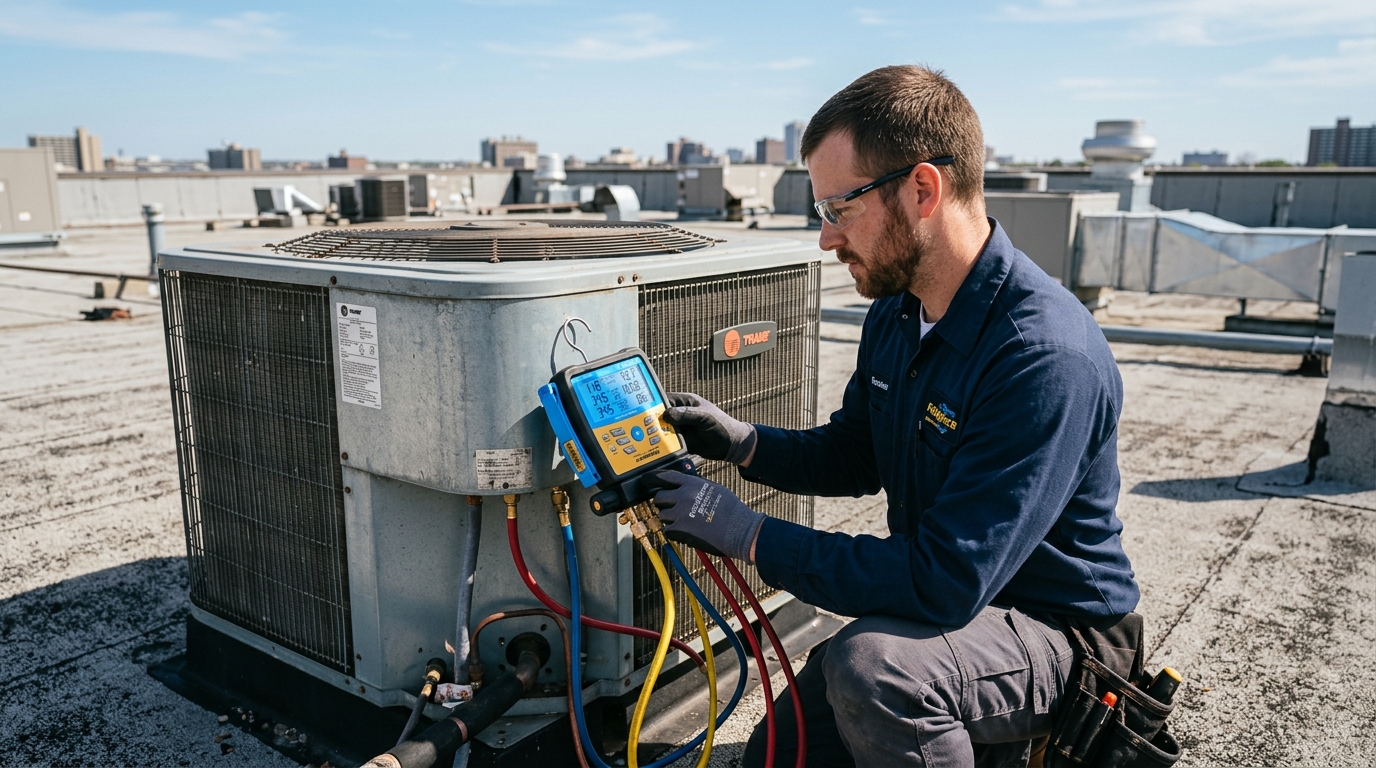

The SMAN480V is built with a heavy-duty 4-port forged aluminum block that includes a dedicated 3/8" vacuum port. This allows technicians to perform deep vacuum evacuations directly through the manifold without swapping hoses.

• Built-In Micron Gauge: Tracks vacuum levels from atmospheric pressure down to 50 microns with real-time rate-of-rise (decay) indicators.
• Water-Resistant Casing: IP54 certified to survive heavy rain on rooftop service calls.
• Backlit Display: Displays high side, low side, saturated vapor/liquid temperatures, target superheat, and actual superheat simultaneously.

2. Job Link Wireless Integration: True Remote Diagnostics

What sets Fieldpiece apart is the Job Link wireless ecosystem. With a 1000-foot line-of-sight wireless range, the manifold receives live telemetry from wireless pipe clamps (JL3PC), psychrometers (JL3RH), and manometer probes.

Instead of running back and forth between the outdoor condenser and the indoor air handler, you place wireless psychrometers in the return and supply plenums. The SMAN automatically receives indoor wet bulb and dry bulb readings, instantly computing the exact target superheat required by the system's fixed orifice or piston.

3. Eliminating Flow Restrictions with Core Tools

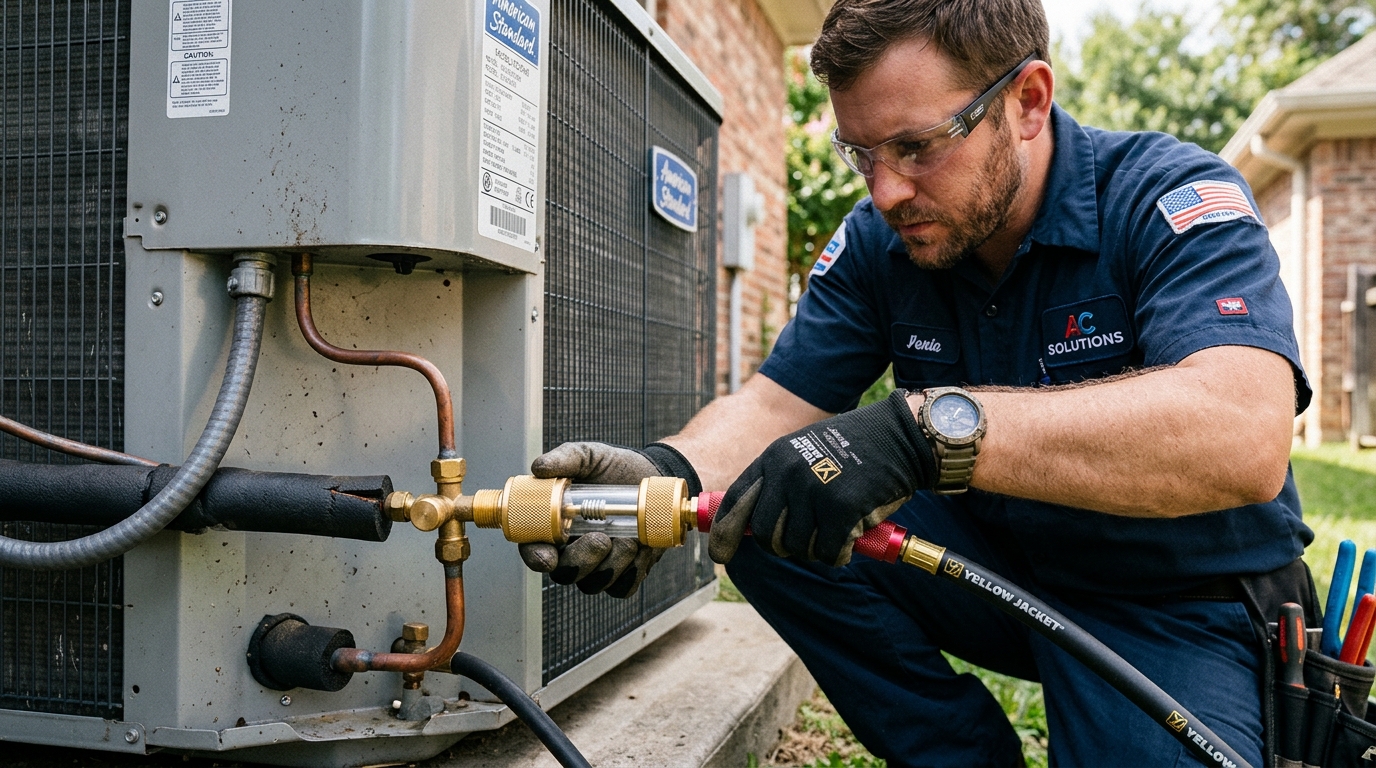

To get the fastest, cleanest readings and evacuations, the manifold must be paired with low-loss valve core removal tools like the Fieldpiece VC1G or VC2G.

Field Best Practice: Removing the 1/4" Schrader valve core increases evacuation flow rate by over 800%. Using a sight-glass valve core tool lets you verify that no liquid refrigerant or oil slug is trapped before initiating deep vacuum.

4. Diagnostic Checklist for Inverter & Heat Pump Systems

1. Attach wireless pipe clamps to both liquid and suction lines with thermal paste for instant subcooling readings.
2. Verify compressor frequency modulation on the indoor thermostat or outdoor diagnostic board.
3. Monitor the saturated suction temperature to ensure coil freeze protection limits are maintained.
4. Export a certified Job Link PDF commissioning report directly to the customer before leaving the job site.
