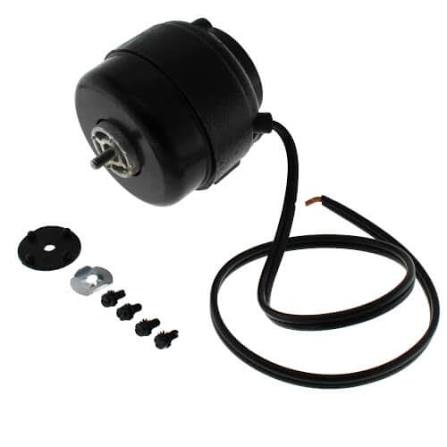

Packard Motor UB Clockwise 9W 115V L5411

The Packard L5411 is a 9 watt, 115 volt clockwise rotation unit bearing motor for refrigeration evaporator and condenser fan duty.

The mounting arrangement on unit bearing motors of this type is typically a set of threaded studs projecting from the motor face, which pass through a bracket or the equipment panel and are secured with nuts. The arrangement is simple and adapts readily, but stud spacing and thread size vary between manufacturers and should be confirmed against the existing bracket.

Orientation is the constraint that matters most. These motors are lubricated for a specific shaft attitude, normally horizontal, and mounting them outside the permitted range allows the lubricant to migrate away from the bearing surfaces. The motor runs for a period and then fails, with the cause rarely identified.

Where an equipment position requires a different orientation, a motor rated for it should be specified rather than adapting one that is not.

Confirm wattage, voltage, rotation, shaft diameter and length, mounting stud spacing and thread, and permitted mounting orientation before ordering, and verify the fan blade is correct for the application.

Brand

Packard

SKU

L5411

Category

Electric Motors

Weight

2.5 lbs

Dimensions

3.50" x 3.50" x 3.30"

Price

$45.00

Availability

In stock

Rating

0 / 5.0
