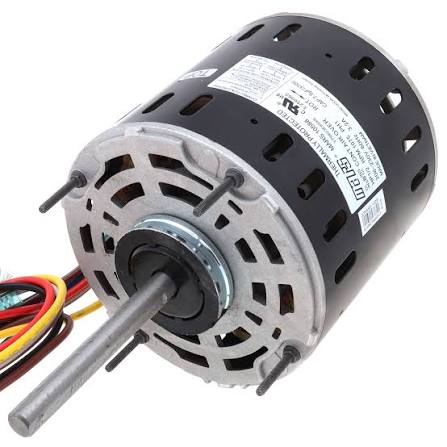

Mars Electric Motor 1/2 HP 208-230V 1075 RPM

The Mars M10588 is a 1/2 horsepower, 208-230 volt, 1075 RPM motor for fan and blower applications in HVAC and refrigeration equipment.

Half horsepower at 1075 RPM is one of the most commonly required fractional motor specifications in HVAC service, covering condenser fans on larger residential units, indoor blowers in mid-size air handlers, and a range of commercial fan applications.

Because the specification is so common, it is also the size most likely to be substituted carelessly. A motor of the right horsepower and speed but the wrong shaft length, rotation, or frame diameter will not install correctly, and one with the wrong capacitor requirement will fail early even if it fits.

Verifying the full specification rather than the headline rating is what separates a repair that lasts from one that returns.

The motor is a permanent split capacitor design requiring a correctly rated run capacitor, which should be measured or replaced at the same time as the motor.

Confirm horsepower, RPM, voltage, rotation, frame diameter, shaft diameter and length, mounting arrangement, and capacitor rating before ordering, and check running current against nameplate on completion.

Brand

Mars

SKU

M10588

Category

Electric Motors

Weight

15.8 lbs

Dimensions

10.90" x 5.60" x 5.60"

Price

$139.00

Availability

In stock

Rating

0 / 5.0
