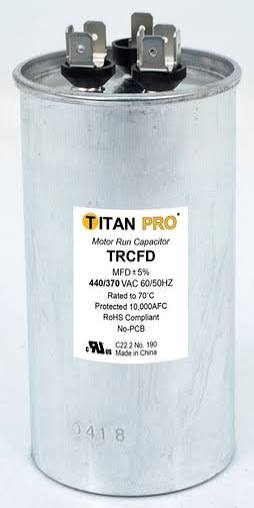

DiversiTech Capacitor 70/5 MFD 440/370V TRCFD705

The DiversiTech TRCFD705 is a round dual run capacitor rated 70 plus 5 microfarad at 440 and 370 volts for large compressor and condenser fan motor applications.

DiversiTech part numbers for run capacitors follow a consistent structure that makes them straightforward to interpret once the pattern is recognised. The letters identify the series and the case shape, with R indicating a round case and O an oval one, D indicating a dual section unit, and the trailing digits giving the capacitance values in order, compressor section first and fan section second.

Reading TRCFD705 accordingly gives a round, dual, 70 plus 5 microfarad capacitor. The same logic applied to a single capacitor part number gives the case shape and the one capacitance value.

Understanding the convention speeds up ordering and reduces the risk of transposing the two values on a dual capacitor, which is an easy mistake to make when the numbers run together and a costly one to discover after installation.

The 70 microfarad section serves the compressor through HERM and the 5 microfarad section serves the condenser fan motor through FAN.

Confirm both values against the equipment data plate, verify case dimensions and terminal layout, and discharge both sections before handling.

Brand

DiversiTech

SKU

TRCFD705

Category

Capacitors

Weight

0.8 lbs

Dimensions

2.50" x 2.50" x 4.75"

Price

$18.00

Availability

In stock (7 available)

Rating

0 / 5.0
