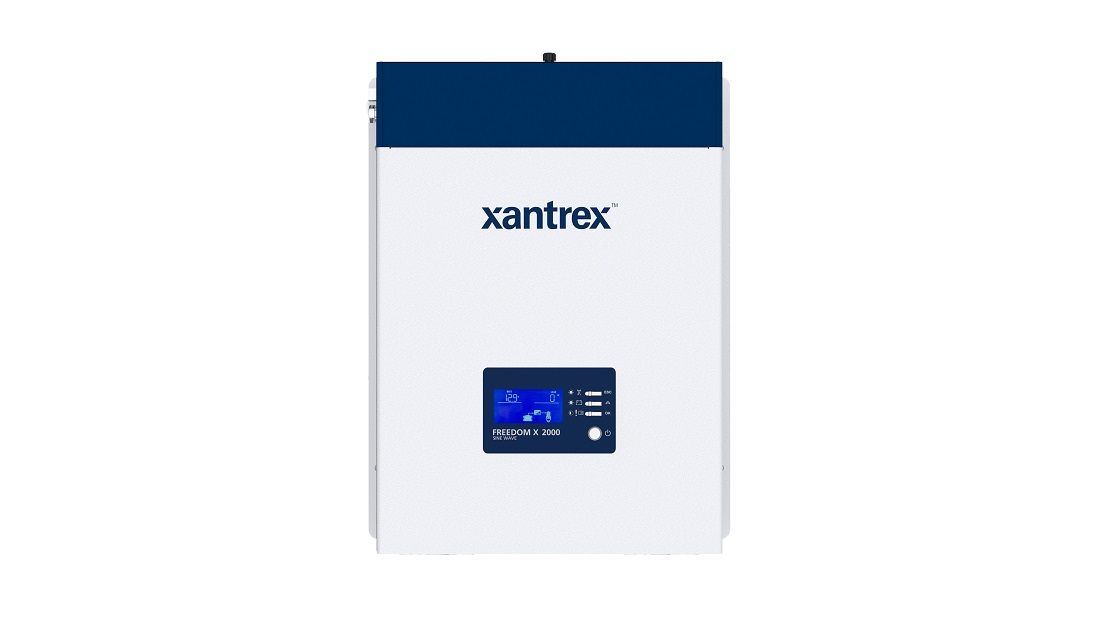

Xantrex 817-2000-12 Freedom X2000-12 2000W 230V True Sine Wave Inverter

Name: Xantrex 817-2000-12 Freedom X2000-12 2000W 230V True Sine Wave Inverter
Brand: Xantrex
SKU: XAN817200012
Price: 995.00 USD
Availability: InStock

Brand: Xantrex SKU: XAN817200012

Availability: In Stock 3 available Ships fast from our US warehouses

$995.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Xantrex Authentic part

Description

Xantrex Freedom X 2000 230v 2000W Inverter

Model: 817-2000-12

Extended Surge Rating: Surges to 2X continuous power for at least 2 seconds for motor loads
True Sine Wave AC Power: For operation of sensitive and motor loads
Ignition Control: Feature to turn inverter on/off via a 12 VDC signal and to minimize battery drain by switching the inverter off when the ignition key is turned off
Wide 10-17 VDC Input Range: Ensures inverter operation on high voltage alternators found on many new vehicle chassis
Programmable AC Under-Voltage (170-220V) Shutdown: Feature ideal to operate under weak shore power or generator input
Built in 30A AC Transfer Relay: Senses when outside AC Power is present and transfers the load from the inverter to the source of incoming power

True sine wave 120 Vac inverter with built-in transfer switch. Designed for recreational and commercial applications.. Configure and monitor system performance via Bluetooth app available on the optional Bluetooth remote panel (# 808-0817-02)

The Freedom X inverter offers premium performance in a lightweight compact package. It cranks out full output from -20 degC - 40 degC for operation in all climate temperatures. The extended surge rating of the Freedom X makes it ideal to start difficult loads including fridge and microwave. The quick connect terminals at AC IN/OUT make installation a breeze.

Specifications
AC Output Operating Voltage Options

220/230/240V
Continuous Output Power	Continuous Power 2000 W @40oC True sine wave (TSW)
Continuous AC Output Current	8.3 A
Surge Power	4000 W (> 2 sec)
Frequency (Configurable)	50 Hz (or 60 Hz)
DC Input Operating voltage range	10.0 - 17.0 V
DC Input Max Non-Operating Voltage	25.2 V
DC Input Nominal Voltage (inverting)	12.0 V
DC Nominal Current at Full Load	192 A
Peak Efficiency	91%
Full Load Efficiency	> 87.5%
GENERAL SPECS
Operating Temperature Range	-20 to 60 oC, with output derated above 40 degC
Storage Temperature Range	-40 to 70 oC
Operating Humidity Range	5 to 95% RH, non-condensing
Operating Input AC Pass-Through Voltage Range	170-280V
Safe Non-Operating Input AC Voltage Range	Up to 300V
Transfer Relay AC Current Rating	30 A , 24 A continous
L x W x H (without flanges)	370 mm x 275 mm x 100 mm
L x W x H (with flanges)	370 mm x 305 mm x 100 mm
Net Weight	7.2 kgs
REGULATORY APPROVALS
Safety	CE Marking, Low Voltage Directive Compliant (Marine installations, drip shield, 808-1050)
EMC	CE Marking, EMC Directive and Automotive EMC - Regulation 10 R-06 Compliant
Environmental	CE Marking, RoHS Directive Compliant
