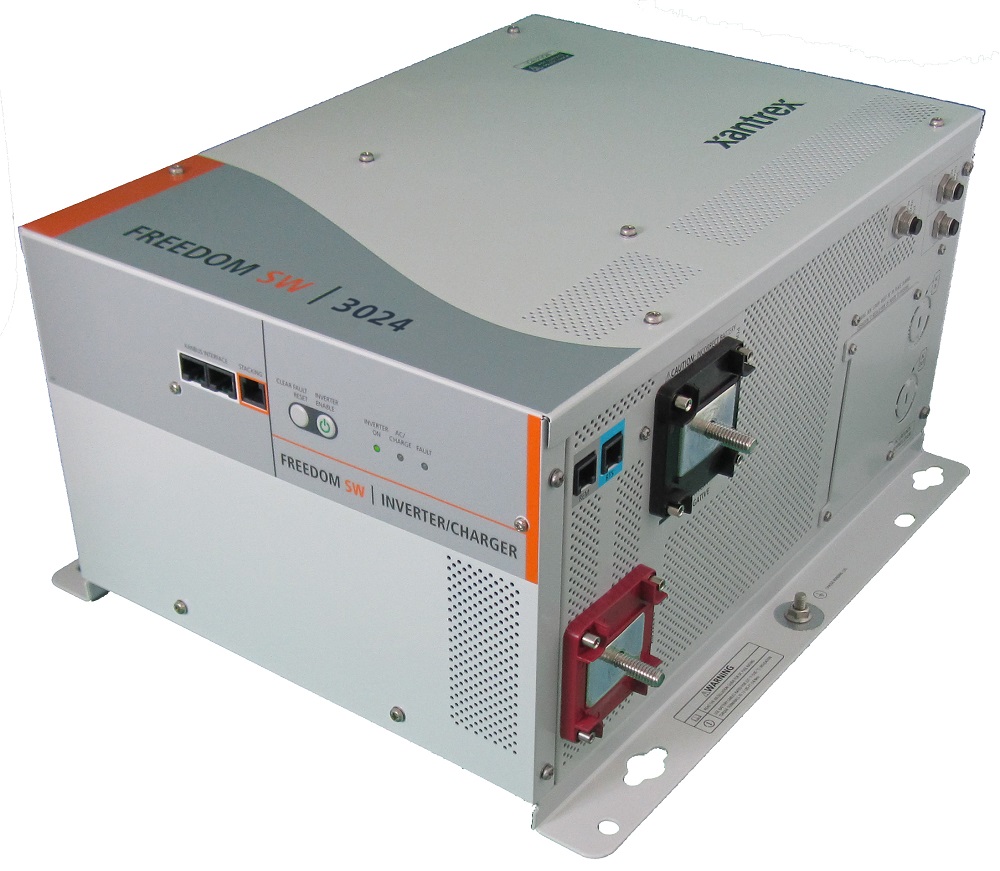

Xantrex 815-3024 Freedom SW3024 24v Inverter Charger

Name: Xantrex 815-3024 Freedom SW3024 24v Inverter Charger
Brand: Xantrex
SKU: IZP-59271
Price: 2595.00 USD
Availability: InStock
Rating: 4.6 (14 reviews)

Brand: Xantrex SKU: IZP-59271

Availability: In Stock Ships same day if ordered by 12 pm

4.6 (14 reviews)

$2,595.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

4.6 / 5 0 reviews

In Stock Ships fast

Xantrex Authentic part

Description

Xantrex SW3024 24v 3000W Inverter Charger

Model: 815-3024

Pure sine wave output in two 24-volt
Parallel stacking capability to double the inverter power output
Series stacking capability enables operation of 240 Vac applications
Advanced configuration options for customized applications*
Built-in transfer switch automatically transfers between inverter power and incoming AC power
Power factor corrected, multi-stage charger for fast, efficient charging
Temperature compensated charging for a vareity of climate conditions
Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power**
Wide operating temperature range
Conformal coated circuit boards for humid environments
Dual input / Dual output AC interface (3000W model)
Compatible with the Xantrex Automatic Generator Start*** (Part# 809-0915)
Meets CSA, UL458 (with marine supplement), ABYC and FCC Part 15, Class B requirements

The NEW Freedom SW 24 Vdc inverter/charger is packed with features and it is one of the most advanced inverter/chargers in the market today. The Freedom SW features premium sine wave output with high surge capability and temperature compensated, power factor corrected, multi-stage charging to meet power needs of demanding loads including inductive motor loads.

The Freedom SW inverter/charger provides utility grade AC power to operate commonly used AC-powered electronics such as plasma television sets, microwaves, entertainment systems, computers, printers, power tools, refrigerators and much more.

The Freedom SW offers SERIES and PARALLEL stacking capability to enable twice-the-rated output and operation of 240 Vac applications respectively. Both models are compatible with optional accessories such as the System Control Panel and the Automatic Generator Start.

*A System Control Panel is required for all system configuration and setup **When used with the remote panel ***Sold separately

Specifications
Output power (continuous at 40 degC)

3000 W
Surge rating (5 seconds)	6000 W
Peak output current	75 A
Output frequency	60 Hz +/- 0.2 Hz
Output voltage	120 Vac
Output wave form	Pure sine wave
Optimal efficiency	94%
No-load power draw (inverting)	< 1.5 Adc
Input DC voltage range	20 - 32 Vdc
AC connections	Split phase in / dual out
Electrical specifications charger
Output current (continuous at 25 degC)	75 A
Output voltage	24 Vdc
Output voltage range	12 - 32 Vdc
Charge Control	3 stage with manual equalize
Charge temperature compensation	Remote battery sensor (included)
Efficiency	> 85%
AC input power factor (maximum charge)	0.95 typical
Input current (for maximum charging)	22 A rms nominal
Input AC voltage	120 Vac
Input AC voltage range	85 - 140 Vac
Dead battery charge	> 12 Vdc
General Specifications
Compatible battery types	Flooded / Gel / AGM
Transfer relay rating	2 legs at 30 A each
Transfer time (AC to inverter and inverter to AC)	< 20 ms
Operating temperature range (full power)	- 4 degF to 104 degF (- 20 degC to 40 degC)
Storage ambient temperature range	- 40 degF to 185 degF (- 40 degC to 85 degC)
Unit dimensions (H x W x L)	7.75 x 13.5 x 15.25 in (197 x 343 x 387 mm)
