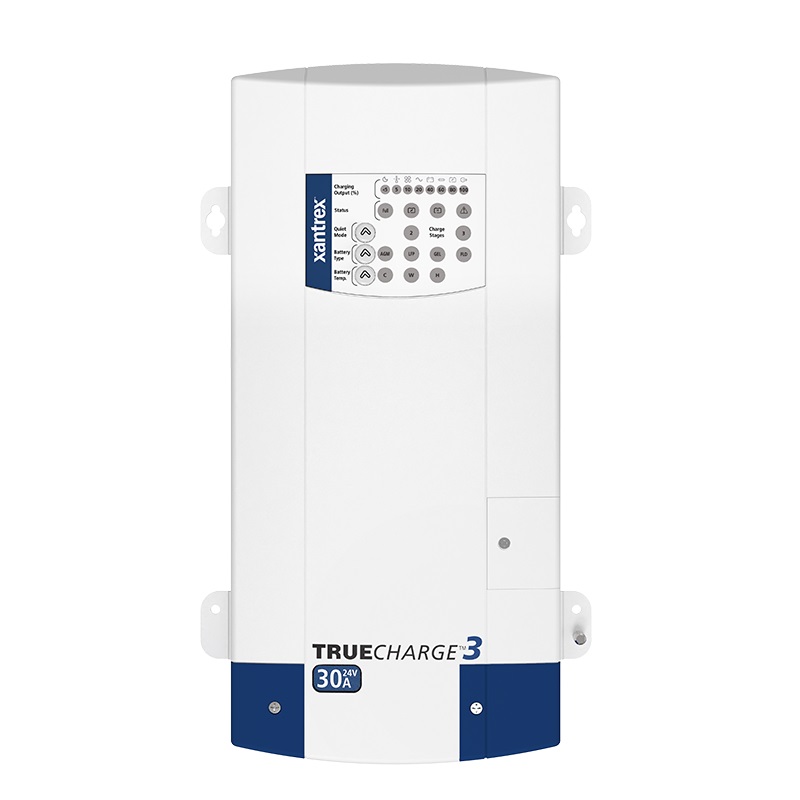

Xantrex 804-2430-10 Truecharge3 30 Amp 3 Bank 24v Charger

Name: Xantrex 804-2430-10 Truecharge3 30 Amp 3 Bank 24v Charger
Brand: Xantrex
SKU: XAN804243010
Price: 795.00 USD
Availability: OutOfStock

Brand: Xantrex SKU: XAN804243010

Availability: Call for pricing Ships fast from our US warehouses

$795.00 /each

Currently out of stock

Call or email us for pricing, lead time and alternatives — we source this part on request.

Call for pricing Request this part

Or email sales@texpertdeals.us

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

Call for pricing Talk to our team

Xantrex Authentic part

Description

Xantrex Truecharge3 30 Amp 3 Bank 24v Charger

Model: 804-2430-10

Lithium-ion battery compatible
Automatic 3-stage battery charger
Parallel stack up to 2 chargers
Circuit breaker protection

TRUEcharge3 battery chargers lead the industry with a small footprint and ultra-compact design. In addition to meeting global safety and regulatory standards, they feature low electrical interference and efficient, power factor corrected multistage charging. Thanks to their inherent drip-proof design characteristics, these chargers can be mounted in multiple positions. Unlike it's predecessors, TRUEcharge3 is Lithium-ion battery compatible.

Designed for recreational and commercial applications worldwide, TRUEcharge3 accepts 90-265 Vac, 47-63 Hz which makes traveling abroad and handling poor-quality power a breeze. The easy-to-read display of the TRUEcharge3 24 V models can be augmented with an optional remote panel. Each models comes with built-in protection against surges and spikes on the AC power line

Specifications
Output current (nominal)

30 A
Charge	28.4 - 31.0 Vdc
Float	26.8 - 27.6 Vdc
Equalize	32 Vdc
DC output connections	Three
AC input voltage	90-265; Vac 47-63 Hz; 120 Vac, 230 Vac, 240 Vac nominal
Temperature compensation	Three settings
Charger efficiency	Greater Than 80 percent
Battery type	Gel, Flooded, AGM, Lithium-Ion
Minimum recommended battery bank size	60 Ah
Operating temperature	0-60 degrees C (32-140 degrees F)
Storage temperature	-40-80 degrees C (-40-176 degrees F)
Battery connection	Three positive terminals, One negative terminal
Weight	9.9 lb (4.5 kg)
Warranty	Two year
Dimensions	3.5 x 6.7 x 13.4in (90 x 170 x 340 mm)
