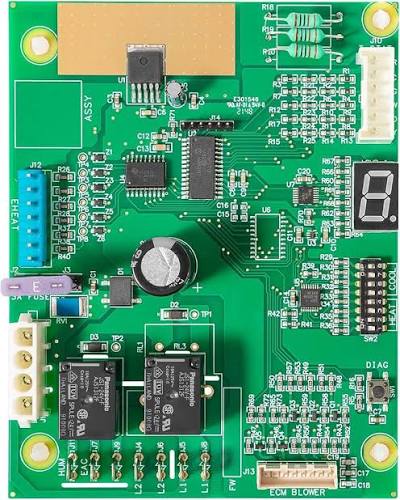

Style Crest Control Board 1006801R

The Style Crest 1006801R is a replacement furnace control board for compatible manufactured housing heating equipment.

An integrated furnace control board manages the entire heating sequence: it receives the thermostat call, runs the inducer and proves the pressure switch, energises the ignitor through its warm-up period, opens the gas valve, monitors flame through the sensor, brings on the circulating blower after the fan-on delay, and holds the blower running through the fan-off delay after the call ends. It also enforces the safety interlocks, locking the equipment out if flame is not proved or if a limit opens.

Most boards provide diagnostics through a flashing indicator, and reading that code before replacing anything is the single most useful diagnostic step available. The code frequently identifies a failed pressure switch, an open limit, a flame sense fault, or a rollout condition, none of which is a board fault.

Boards are model specific. Dimensions, connector layout, terminal designations, and the programmed sequence are matched to a particular furnace family, so the part number must be verified against the equipment rather than selected on appearance.

Isolate power before removal, record connector positions, and observe electrostatic precautions.

Applications include manufactured and modular housing gas furnace service.
