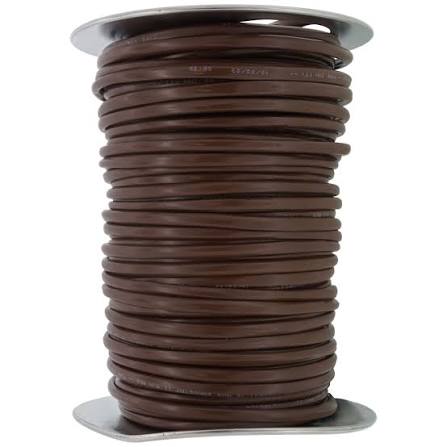

Southwire Thermostat 250 18/1 553100407

The Southwire 553100407 is multi-conductor thermostat cable supplied in a 250 foot package.

High conductor count control cable serves installations where a large number of discrete signals must be carried between a control location and equipment: zone panels serving several zones, commercial equipment with multiple stages and accessories, and building automation interfaces terminating at a central point.

At high conductor counts, the practical considerations change. The cable is physically larger and stiffer, requiring larger bored holes and greater bend radii, and it is heavier, so support at closer intervals is warranted.

Termination becomes a more substantial task, and the case for systematic labelling becomes overwhelming. Landing a dozen conductors without a record of what each carries produces an installation that nobody can service.

A related consideration is whether the application would be better served by a communicating or networked control scheme, which carries many signals over few conductors. For long runs with many signals, the cost and labour comparison frequently favours the communicating approach, though it constrains equipment choice to a single manufacturer.

Applications include residential and light commercial zoning, multi-stage equipment, and control interface wiring.

Brand

Southwire

SKU

553100407

Category

Thermostats

Weight

15.5 lbs

Dimensions

10.50" x 10.50" x 5.50"

Price

$209.00

Availability

In stock

Rating

0 / 5.0
