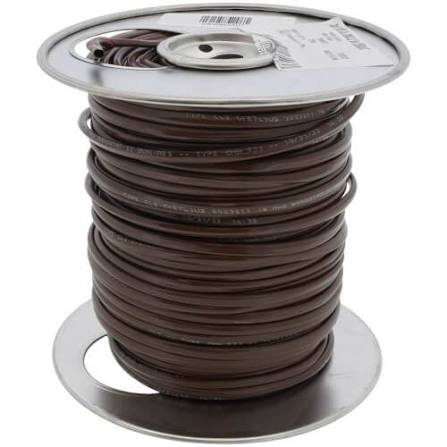

Southwire 18/6 Thermostat 250 553065407

The Southwire 553065407 is 18 gauge, 6 conductor thermostat cable supplied in a 250 foot package.

Zoning systems and multi-stage equipment increase conductor requirements beyond what a conventional installation needs, and six conductors is frequently the point at which those requirements begin to be met.

A zone panel requires connections between the panel and each thermostat, and between the panel and the equipment. Each zone thermostat needs its own run, and each damper requires its own connection, so a zoned installation involves considerably more control wiring than a single thermostat system.

Multi-stage equipment requires a conductor for each stage. A two stage furnace with two stage cooling, a fan output, a supply, and a common already requires seven conductors.

Communicating systems, by contrast, reduce the requirement, since they carry all information over a small number of conductors using a data protocol. The trade-off is that communicating systems are manufacturer specific and generally cannot be mixed with equipment from another maker.

Establishing the full system configuration before selecting cable avoids running a cable that will need replacing.

Applications include residential and light commercial thermostat, zoning, and control wiring.

Brand

Southwire

SKU

553065407

Category

Thermostats

Weight

9.8 lbs

Dimensions

10.00" x 10.00" x 4.00"

Price

$138.00

Availability

In stock

Rating

0 / 5.0
