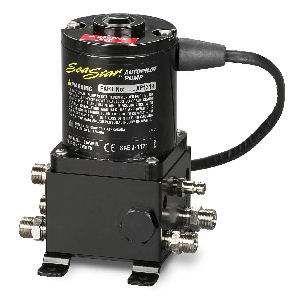

Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min

Name: Seastar AP1233 Type 2 Pump 12v 110 Cu In/Min
Brand: Seastar
SKU: NKH-11529
Price: 795.00 USD
Availability: InStock
Rating: 5.0 (11 reviews)

Brand: Seastar SKU: NKH-11529

Availability: In Stock Ships same day if ordered by 12 pm

5 (11 reviews)

$795.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

5 / 5 0 reviews

In Stock Ships fast

Seastar Authentic part

Description

The Seastar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in two different pump sizes (type 1 & type 2).

AUTOPILOT ? KEY FEATURES

Long life DC Motor (i.e. long life brushes)
Compact design
Simplified installation
Low power consumption
ABYC, CE?s and J1171 compliant
Superior corrosion resistance
Quiet operation
All mounting bracket displacement included

Voltage	12 volt
Fittings	Compatible w/ Standard Seastar Hose - Thread 9/16 in X 24 UNEF
Wire Details
Length	24 in
Gauge	12 awg
Connector	None - Bare Leads
Oil Compatibility	Seastar Steering Fluid (MIL 5606)
Weight	4.9 lbs (2.2 kg)
Pump Sizes	Type 1: 60 in3/min (no-load)
Type 2: 100 in3/min (no-load)
Maximum Pressure	1000 psi
Typical Current Draw	12V Type 1: 4 ? 8 amps
(Depending on Application)	12V Type 2: 5 ? 11 amps
Ram Capacity
Type 1	4.9 in3 - 14 in3
Type 2	14 in3 - 21 in3
