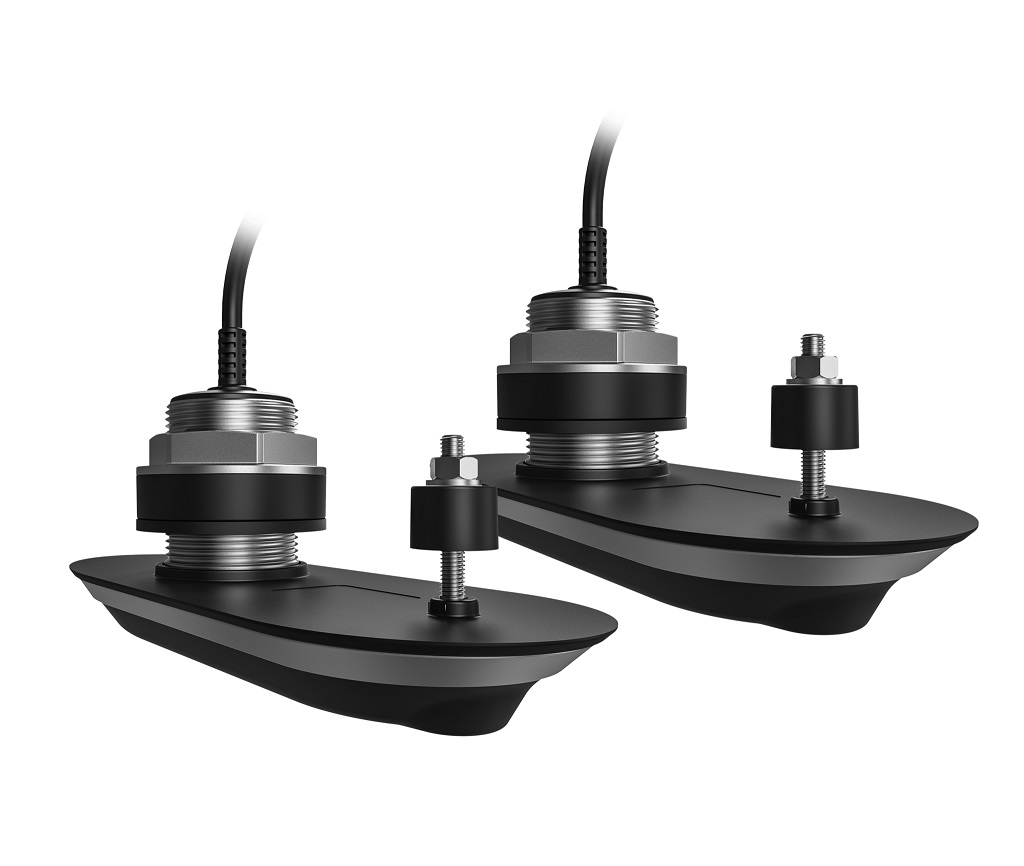

Raymarine T70451 RV-420 Thru-Hull Pair Stainless Steel 20d

Raymarine RV-420 Stainless Steel Through Hull Transducer Pack with 20 deg Tilt

Designed for inboard or outboard boats, the RV-420 stainless steel through hull transducer system lets you easily identify structures and locate fish with the life-like clarity of RealVision 3DTM sonar.

The RV-420 system is a 4-channel, Wide Spectrum CHIRP transducer system with DownVisionTM, SideVisionTM, high frequency CHIRP fish targeting and RealVision 3DTM sonar inside. The transducer system has a built-in attitude and heading reference system (AHRS) that stabilizes the sonar imagery, automatically compensating for vessel motion. You'll enjoy crystal-clear imagery in waves, swells, and while maneuvering. The RV-420 system also has a built-in fast response water temperature sensor for quick, accurate readings.

Raymarine's RV-420 Stainless Steel Through Hull Transducer system pack contains a pair of RealVision 3D transducers with internal tilt to accommodate hull deadrise angles from 13 deg to 20 deg. This completely eliminates the need for fairing blocks. The low-profile design slips effortlessly through the water without causing drag or cavitation. The near-flush RV-420 system works even works great on trailered boats.

The RV-420 system features rugged stainless steel through hull bodies suitable for fiberglass, wood or metal hulls. One transducer transmits and receives to port and downwards, the other to starboard and downwards, ensuring a full 180 deg of underwater coverage even on boats with deep keels or other underwater protrusions. Each transducer features a 2-meter pigtail and the overall cable length when fully assembled is 10 meters (33 feet.)

• RV-202P stainless steel port transducer array with 2-meter cable
• RV-20S stainless steel starboard transducer array with 2-meter cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8-meter (26-feet) Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions
