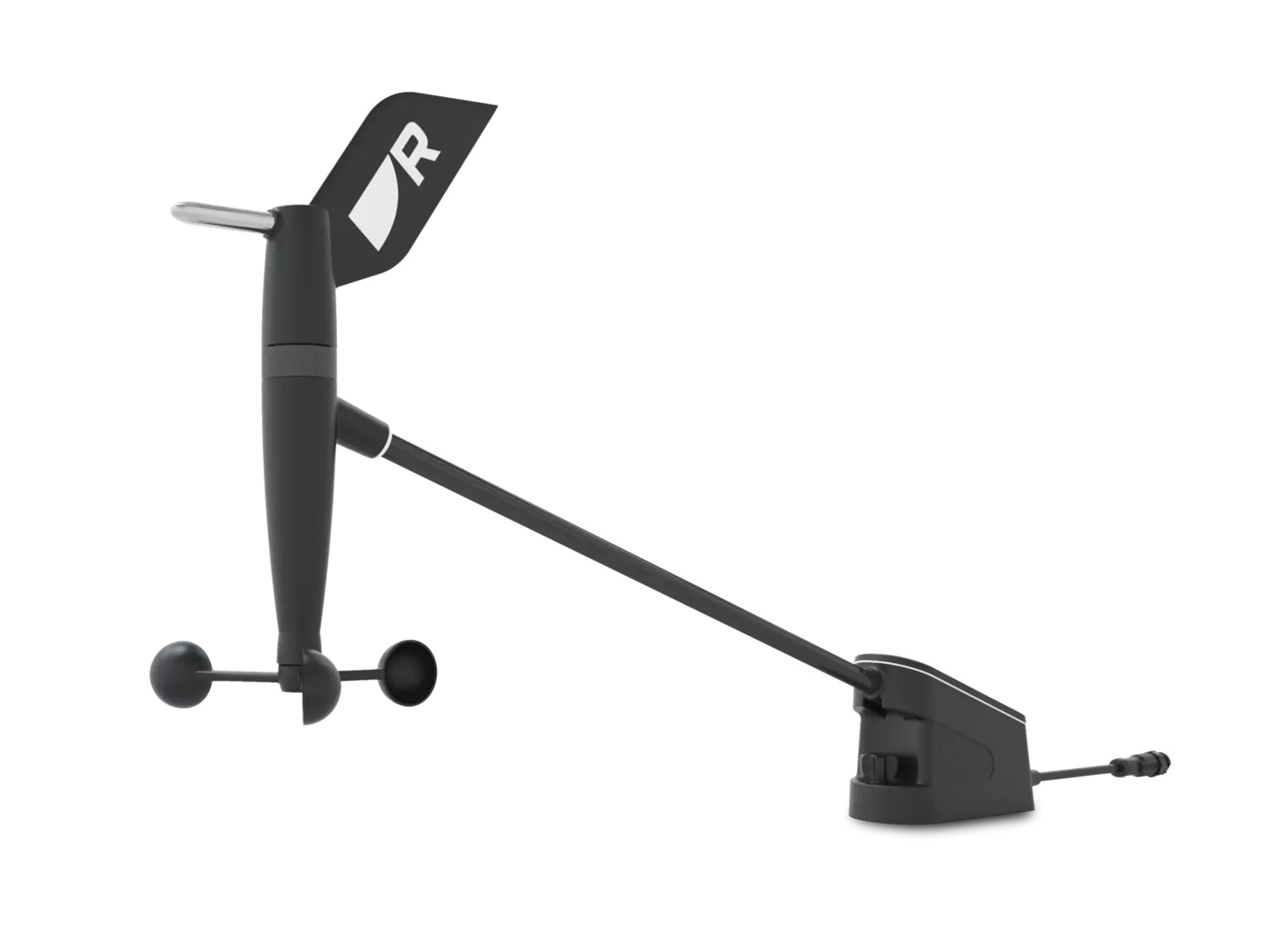

Raymarine E70670 RSW Smart Wind Transducer Short Arm 30m Cable

Raymarine E70670 RSW Smart Wind Transducer Short Arm 30m Cable

Brand: Raymarine SKU: V3P-48584
Availability: In Stock Ships same day if ordered by 12 pm
4.5 (14 reviews)
$1,449.99 /each
Visa Mastercard American Express Discover PayPal Apple Pay Google Pay Shop Pay Secure Checkout
100% Genuine Parts Manufacturer Warranty Ships from USA
Secure Payments
30DAY Easy Returns
Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part
Product Highlights
Warranty Manufacturer backed
4.5 / 5 0 reviews
In Stock Ships fast
Raymarine Authentic part
Description

Raymarine RSW Wired, Smart Wind transducer with 30m Cable

Model: E70670
  • Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.
  • Through rigorous wind tunnel testing, we've fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.
  • Trusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.

The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.

Specifications
Length
Wind transducer (including cable): 657.762 mm (25.90 in)
WidthWind transducer: 46.96 mm (1.85 in)
HeightWind transducer: 305.86 mm (12.04 in)
Power
Nominal supply voltage12 V dc (via SeaTalk NG)
Operating voltage range9 V to 16 V dc
Power Consumption< 100 mW
Fuse ratingEnsure that the SeaTalk NG backbone is protected by a 5 A fuse
NMEA 2000 LEN (Load Equivalency Number) - based on nominal 9 V rating:1
Environmental
Operating temperature range-25 degC to +55 degC (-13 degF to +131 degF)
Storage temperature range-30 degC to +70 degC (-22 degF to +158 degF)
Relative humidityMasthead: 100%
Waterproof ratingWind transducer: IPx6/IPx7
Wind115 mph (185 kph)
VibrationEN 60945:2002 (exposed)

What's in the Box:
  • No.10 x 3/4 self tapping screws x 4 (for mounting the wind transducer)
  • No.7 x 3/4 in self tapping screws x 2 (for mounting the gateway)
  • 40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)
  • Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)
  • Mast cable
Specs
Brand
Raymarine
SKU
V3P-48584
Category
Sonar Transducers
Weight
6 lbs
Dimensions
14.5 x 11.5 x 3.5
Price
$1,449.99
Availability
In stock
Rating
4.5 / 5.0
