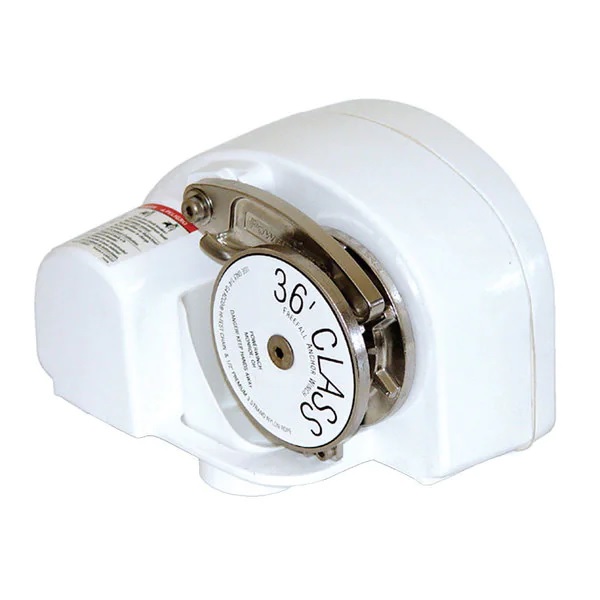

Powerwinch P77736 36ft Class Windlass

• Fastest way to anchor - Anchor drops up to four times faster!
• Easiest way to anchor - Free-Fall stops when the anchor has reached bottom - Rope does not collect on your deck while you waste time and effort powering down.
• Easiest to use - Just hold the helm switch for only five seconds to release free-fall, versus one to three minutes powering down.
• Precise anchoring location - Anchor your boat where you want it to be, unlike powering down where your boat will drift while you power down.
• Easy push-button helm operation
• Above deck design - More storage space for rope and chain
• Helm operated one-touch control - Easy to reach and easy to use
• Protect-a-deck rubberized deck gasket - Keeps unit from scuffing your deck
• Sleek styling with small footprint - Uses up to 40% less deck space than competition
• Durable aluminum housing with e-coat primer and polyester powder coat. - No plastic parts to crack - Finish is chip-resistant
• Patented Free-Fall System anchors up to 300 feet/min - Up to four times faster than powering down
• Exclusive stainless steel rope & chain guidance system - Durable materials stand up to years of use
• Ultra smooth motor uses less amps - Free-fall does not need battery power so it preserves your battery
• Built with durable stainlesssteel fasteners - Resists corrosion for easy removal
• Watertight seals - For additional protection against corrosion
• One piece motor plate - For smooth power transmission & improved gear life
• Heat treated oil-impregnated gear systems - Smoother operation, resists corrosion, lasts longer
• Stainless steel drive shafts - For years of smooth, reliable performance
• Replaceable Rode-Glide - Smoothly channels rope and chain below deck
• Use tapered back splice - For smooth rope-to-chain transition

Boat Size Up to 36 feet
Pulling Power 775 lbs
Retrieval Speed 80 feet / minute
Anchoring Speed Up to 250 feet / minute
Line Size & Type (required) 1/2 in Premium Medium Lay Nylon
Chain Size & Type (required) 1/4 in Hi-test ACCO G4
Rope & Chain System Electro-Plated
Stainless Steel Replaceable Rode-Glide Engineered Resin
Helm Operated Control Switch Rocker
Avg. Amp Draw (during retrieval) 8-12 amps
Required Wire Size to Battery 8 gauge (50 feet run) 6 gauge (over 50 feet run)
Standard Equipped Thermal Circuit Breaker 25 amp auto reset
Unit Weight (lbs) 22
Overall unit Dimensions10-9/16 in L x 7 in W x 6-5/16 in H
Warranty 3 years
