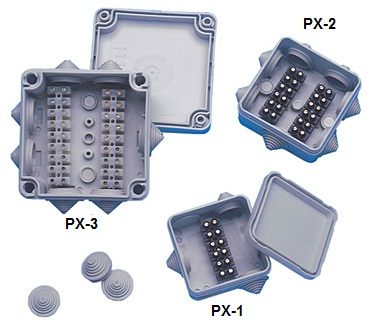

Newmar PX-1 Junction Box Waterproof
$54.50
/each
In Stock
— get it by Fri, Aug 7
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Newmar
Authentic part
Description
Waterproof Junction Boxes
- Ideal for making wiring connections above or below decks, even in areas subject to occasional spray
- Similar to BX Series junction boxes, but made from rugged, non-corrosive, high impact polypropylene
- Snap-on cover provides watertight seal
- "Universal" cut-to-fit (see diagram) graduated diameter cable entries accommodate wide cable range
- Multiple position connector strips with "captive" screw compression wire terminals installed - meets ABYC standards
- Multiple knockouts provided for conduit access (in addition to cable entries)
- IEC Waterproof Rating: IP54 - "Water projected in jets against the enclosure from any direction shall have no harmful effects."
Specifications
| Model | PX-1 | PX-2 | PX-3 |
| Number of Connector Strips | 1 | 2 | 2 |
| Positions per Strip | 6 | 6 | 9 |
| Max Wire Gauge | 16 | 16 | 16 |
| Number of Cable Entry Ports | 5 | 7 | 7 |
| Number of Cable Entries Installed | 3 | 7 | 7 |
| Spare Cable Entries Provided | 2 | 0 | 0 |
| Cable Diameter Range (inches) | .14-.81 | .14-.81 | .14-1.0 |
| Cable Diameter Range (mm) | 3.5-20.5 | 3.5-20.5 | 3.5-25.5 |
| Box Size Inches | 2.95 x 2.95 x 1.66 | 3.35 in x 3.35 x 1.66 | 4.45 x 4.45 x 2.29 |
| Box Size Centimeters | 7.5 x 7.5 x 4.2 | 8.5 x 8.5 x 4.2 | 11.3 x 11.3 x 5.8 |
