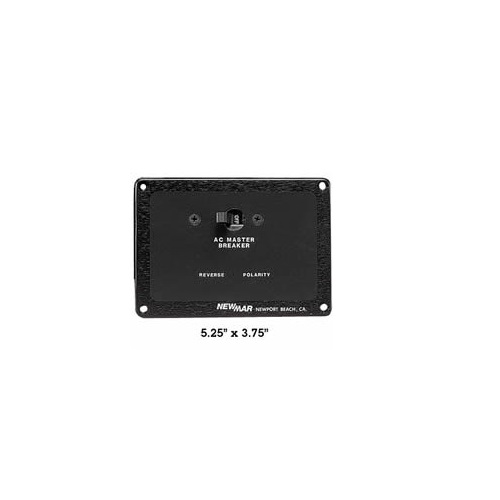

Newmar AC-II AC Master Breaker
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
Essential control/protection whenever AC from shorepower or generators is on board. A double pole master breaker with power on indicator light protects both hot and neutral legs of the AC circuit. A reverse polarity light provides clear warning when wiring is reversed and poses a shock hazard. Single pole branch circuit breakers (Model AC-IX) and individual ?ON? indicator lights provide control and protection of various AC loads. For 115/230 VAC applications ? see ratings note. A label set of common on-board circuits is provided.
AC-IX:
30 amp master breaker , 5 branch circuit capacity 4 installed standard 1-10A, 2-15A, 1-20A, or specify. LS-I Label set included. Panel size: 5 1/4 in x 7 1/2 in, (13.3 X 9.5 cm.,) Weight: 2 lbs., (.9 Kg.)
30 Amp master breaker. Panel size: 5 1/4 in x 3 3/4 in (13.3 X 9.5 cm.), Weight: 1 lb (.5 Kg.)
| Model | Inches | Centimeters |
| AC-II | 4 X 2.5 | 10.2 X 6.4 |
Specs
- Brand
- Newmar
- SKU
- MYV-63517
- Category
- Circuit Breakers
- Weight
- 2 lbs
- Dimensions
- 6.0 x 4.0 x 2.0
- Price
- $148.50
- Availability
- In stock
- Rating
- 4.7 / 5.0
