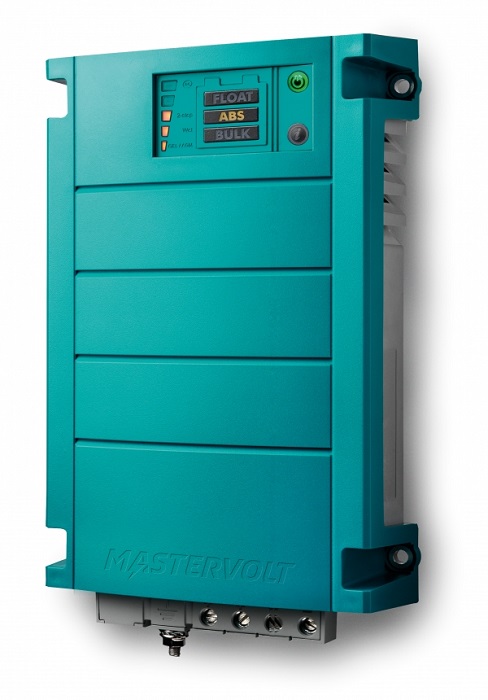

Mastervolt 44010250 ChargeMaster 25A 12v Output 120/230V Input

Name: Mastervolt 44010250 ChargeMaster 25A 12v Output 120/230V Input
Brand: Mastervolt
SKU: MAS44010250
Price: 525.00 USD
Availability: InStock

Brand: Mastervolt SKU: MAS44010250

Availability: In Stock 3 available Ships fast from our US warehouses

$525.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Mastervolt Authentic part

Description

mastervolt ChargeMaster 12/25-3 Battery Charger

Model: 44010250

3-Step+ charging technology for fast and complete charging.
Safe and complete charging due to standard safety features.
Memory function prevents overcharging in case of an unstable power supply.
Clear control panel.
Easy to install
Built-in system functionality (MasterBus) in combination with other Mastervolt products (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2).

Make the most of your batteries with the ChargeMaster, plugging in and charging anywhere in the world. Mastervolt's ChargeMaster guarantees fast and complete charging of your batteries no matter where you are. The ChargeMaster can charge multiple battery banks simultaneously thanks to its combined functionality. Moreover, all ChargeMasters can be easily connected to a MasterBus network with only one cable and one connection (not available on ChargeMaster 12/10 and ChargeMaster 12/15-2). You also have the option of central, local or remote monitoring, configuration and control of your system. The ChargeMaster is available in various models to guarantee you the ideal battery charger for any situation and demand.

The Mastervolt ChargeMaster supplies a maximum capacity wherever you are via auto-ranging. Auto-ranging ensures perfect fully automatic operation anywhere in the world, regardless of the available mains voltage (90-265 V AC, 50 or 60 Hz). The 3-step+ charging technology guarantees fast and complete charging, while the cos phi 1 regulation gets the most out of limited generator capacity.

Metal-on-metal fitting gives a firm connection, and prevents corrosion or overheating of contact surfaces.

The ChargeMaster series has three equal charge outputs. Those of the smaller ChargeMaster models are pre-installed with two metres of cable for a plug & play solution, while the heavier models have one full output (for example for your service battery) and two outputs of 10 A, ideal for your starter batteries.

Specifications
Total charge current

25A
Number of battery outlets	3
Nominal output voltage	12V
Charge current second output	25A
Charge current third output	25A
Battery capacity range	50-250ah
Nominal input voltage	120/230 V (90-265 V), 50/60 Hz
AC connection	2 mtr AC cable
Power supply mode	yes
Display/read-out	LED display
Technical specifications
Charge characteristic	IUoUo, automatic 3-step+ for gel/AGM/wet/Lithium Ion
Charge voltage Bulk	14.4V
Charge voltage Absorption	14.25V
Absorption time	4 hours
Charge voltage Float (wet batteries)	13.25V
Charge voltage Float (gel/AGM batteries)	13.8V
Voltage compensation	Automatic
Power consumption (DC side)	< 2 mA
Full load consumption (230 V AC)	450 W
Current Control function	no
Temperature range (ambient temp.)	-25 degC to 60 degC, derating > 40 degC -13 degF to 140 degF
Protection degree	IP23
Cooling	vario fan
MasterBus compatible	Yes
Dimensions	9.2 x 5.2 x 2.4 inch
