Maretron PT-0-5PSI-01 0-5 PSI Transducer

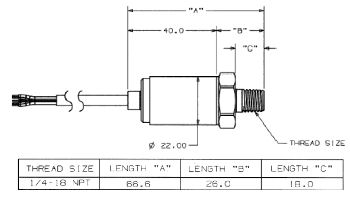

Pressure Transducer Mechanical Drawing

Specification

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Operating Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Storage Temperature <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

-40 degC to 105 degC

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Proof Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Burst Pressure <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

2.4 × Full Scale

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Reverse Voltage Protection <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

± 16V over 5 Minutes

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Construction <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

304L stainless steel

<td WIDTH="55%" VALIGN="TOP" HEIGHT="9 in>

Pressure/Temperature Cycles <td WIDTH="45%" VALIGN="TOP" HEIGHT="9 in>

0 to FS @ 8Hz; and ?40 degC to 105 degC for > 1.8x10<font FACE="Arial,Arial" SIZE="1 in>6 cycles

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Thermal Shock <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

105 degC to ?40 degC, 0.5 hr soaks at Temp. (2s Transfer) for 300 cycles

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Vibration <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

100 to 2000 Hz, 20g Sinusoidal, 3 Axes for 144 hours

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

EMC Compatibility <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

10 Volts/meter per EN 61000-4-3

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Humidity <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85 degC and 90% to 95% R. H. for 250 hours

<td WIDTH="55%" VALIGN="TOP" HEIGHT="8 in>

Weight <td WIDTH="45%" VALIGN="TOP" HEIGHT="8 in>

85g
