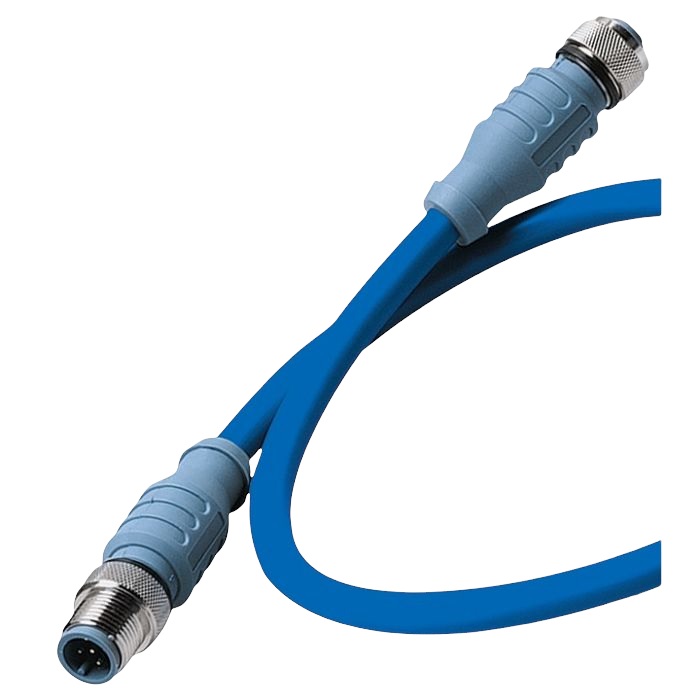

Maretron DM-DB1-DF-10.0 Blue Mid Cable 10M Male to Female Connector

Name: Maretron DM-DB1-DF-10.0 Blue Mid Cable 10M Male to Female Connector
Brand: Maretron
SKU: MARDMDB1DF100
Price: 84.00 USD
Availability: InStock

Brand: Maretron SKU: MARDMDB1DF100

Availability: In Stock 3 available Ships fast from our US warehouses

$84.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Maretron Authentic part

Description

Maretron Blue Mid 10 Meter Cable

Model: DM-DB1-DF-10.0
UPC: 873804001999

Rugged, IP68 rated connectors for continued connection integrity in marine environments
Various cable lengths to match installation requirements
Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable

Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.

Specifications
Contact Carrier Mat/Color

Thermoplastic PUR/Blue
Molded Body Mat/Color	Thermoplastic PUR/Blue
Contact Mat/Plating	Brass/Gold
Coupling Nut Mat/Plating	Brass/Nickel
Connector Outside Diameter	0.59 in
Electrical
Current rating	4.0 Amps
Voltage rating1	250v
Cable
Outer Jacket Mat/Color	PVC/Blue
Conductor Insulation Material	PE (data pair), PVC (power pair)
Number of Conductors	2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
Shielding (3 Levels)	Foil (Overall), Foil (Power Pair), Foil (Data Pair)
Enviromental
Protection class	IEC IP68, NEMA 1,3,4,6P
Temperature rating	-40 degC to 80 degC to (-40 degF to 176 degF)
Approvals
(Cable) UL	PLTC 75 degC Sunlight Resistant E90625, AWM 80 degC 300V
(Cable) CSA	CMX-OUTDOOR-CMG LL54185 75 degC, AWM I/II A/B 80C 300V FT4
NMEA	NMEA 2000(R) Approved
IEC	IEC 61162-3
