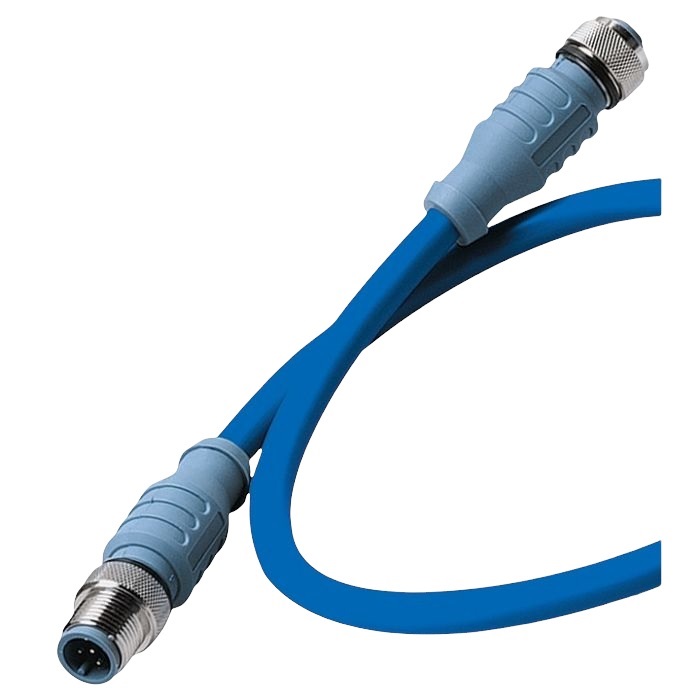

Maretron DM-DB1-DF-08.0 Blue Mid Cable 8M Male to Female Connector
Brand:
Maretron
SKU: W1K-43669
Availability:
In Stock
Ships same day if ordered by 12 pm
3.8
(14 reviews)
$72.00
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
3.8 / 5
0 reviews
In Stock
Ships fast
Maretron
Authentic part
Description
Maretron Blue Mid 8 Meter Cable
Model: DM-DB1-DF-08.0UPC: 873804001968
- Rugged, IP68 rated connectors for continued connection integrity in marine environments
- Various cable lengths to match installation requirements
- Optimized for voltage drop sensitive networks (long runs) because power pair wires have half the resistance of Micro cable
Double-ended cordsets are used for trunk or drop lines and make for a secure connection and simple timesaving installation. The connectors are keyed for error-free connection and are waterproof for continued operation even while submerged in the bilge.
Specifications| Thermoplastic PUR/Blue | |
| Molded Body Mat/Color | Thermoplastic PUR/Blue |
| Contact Mat/Plating | Brass/Gold |
| Coupling Nut Mat/Plating | Brass/Nickel |
| Connector Outside Diameter | 0.59 in |
| Electrical | |
| Current rating | 4.0 Amps |
| Voltage rating1 | 250v |
| Cable | |
| Outer Jacket Mat/Color | PVC/Blue |
| Conductor Insulation Material | PE (data pair), PVC (power pair) |
| Number of Conductors | 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire |
| Shielding (3 Levels) | Foil (Overall), Foil (Power Pair), Foil (Data Pair) |
| Enviromental | |
| Protection class | IEC IP68, NEMA 1,3,4,6P |
| Temperature rating | -40 degC to 80 degC to (-40 degF to 176 degF) |
| Approvals | |
| (Cable) UL | PLTC 75 degC Sunlight Resistant E90625, AWM 80 degC 300V |
| (Cable) CSA | CMX-OUTDOOR-CMG LL54185 75 degC, AWM I/II A/B 80C 300V FT4 |
| NMEA | NMEA 2000(R) Approved |
| IEC | IEC 61162-3 |
