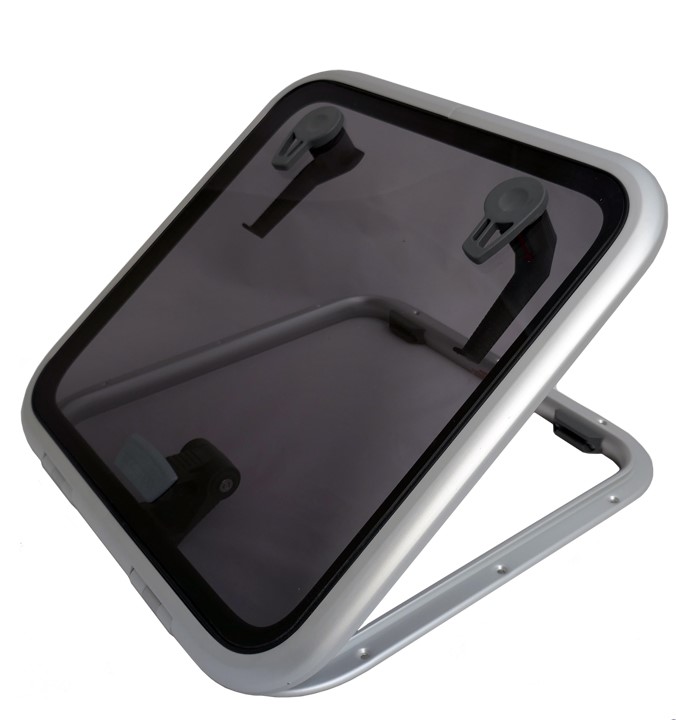

Lewmar 39944030 Size 44 Low Profile Hatch Flange Base
$565.00
/each
In Stock
— get it by Sat, Aug 8
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Lewmar
Authentic part
Description
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 10.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 20 3/16 | 20 3/16 | 1 | 2 7/8 | 17 3/8 | 17 3/8 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4 in). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specs
- Brand
- Lewmar
- SKU
- ODY-26823
- Category
- Hatches & Portlights
- Weight
- 12 lbs
- Dimensions
- 27.2 x 21.2 x 2.5
- Price
- $565.00
- Availability
- In stock
- Rating
- 0 / 5.0
