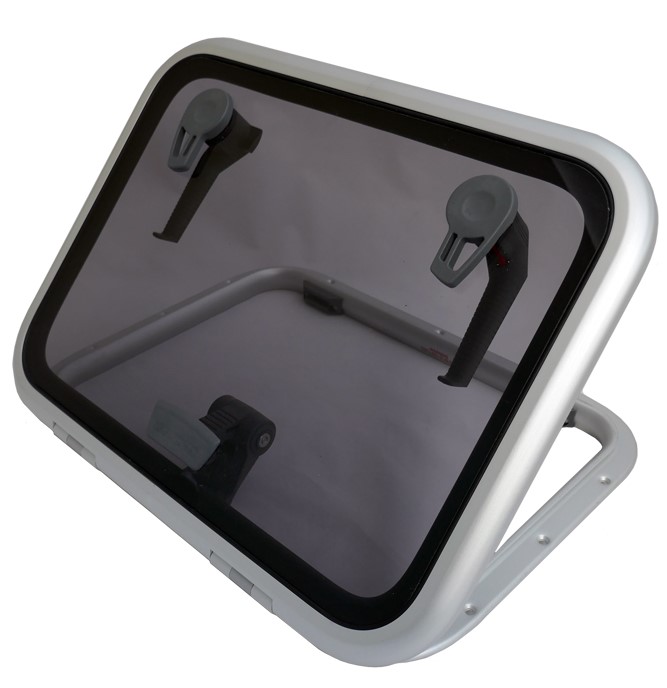

Lewmar 39930030 Size 30 Low Profile Hatch Flange Base
$515.00
/each
In Stock
— get it by Fri, Aug 7
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Lewmar
Authentic part
Description
| Support System | Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| Self Supporting | 9/16 | Smoke Grey | 8.6 | 5/16 |
Dimensions
| Length X (in) | Width Y (in) | Height Z (in) | Radii R (in) | Cut-Out Length X1 (in) | Cut-Out Width Y1 (in) | Cut-Out Radii R1 (in) |
| 15 5/8 | 20 3/4 | 1 | 2 7/8 | 12 7/8 | 18 | 1 11/16 |
Mounting Instructions
Fit to a flat surface with a maximum tolerance of +/- 1mm. Fastening size at hinge section use M6 (1/4 in). Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specs
- Brand
- Lewmar
- SKU
- MAB-94285
- Category
- Hatches & Portlights
- Weight
- 10 lbs
- Dimensions
- 21.2 x 21.2 x 2.5
- Price
- $515.00
- Availability
- In stock
- Rating
- 0 / 5.0
