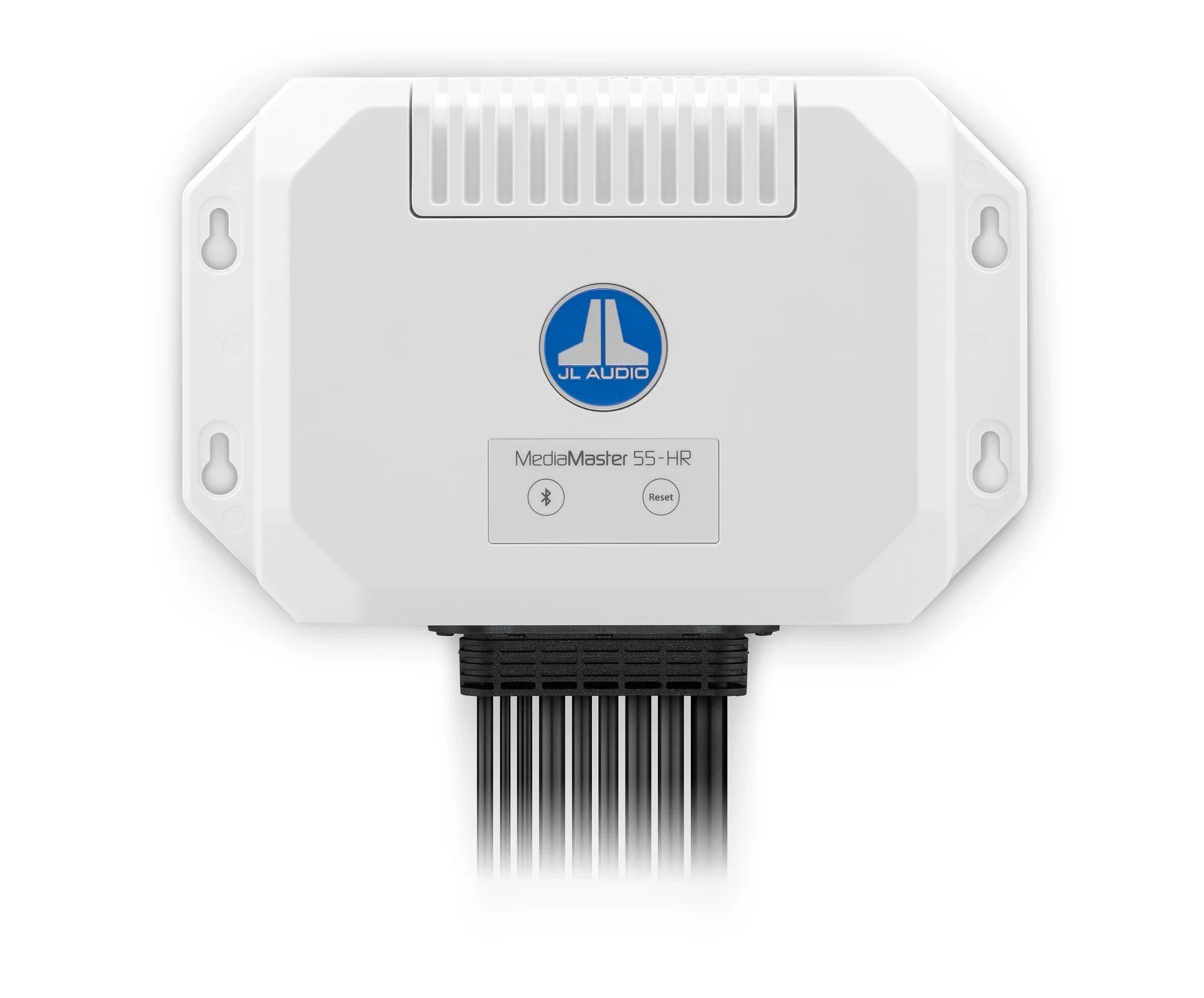

JL Audio 010-03372-00 MediaMaster 55 Weatherproof Hidden Source Unit
Shipsfrom manufacturer

JL Audio 010-03372-00 MediaMaster 55 Weatherproof Hidden Source Unit

Brand: JL Audio SKU: JLA0100337200
Availability: In Stock 8 available Ships fast from our US warehouses
$395.00 /each
8 in stock — you can order up to 8
Visa Mastercard American Express Discover PayPal Apple Pay Google Pay Shop Pay Secure Checkout
100% Genuine Parts Manufacturer Warranty Ships from USA
Secure Payments
30DAY Easy Returns
Fast Shipping
Product Highlights
Warranty Manufacturer backed
0 / 5 0 reviews
In Stock Ships fast
JL Audio Authentic part
Description

JL Audio MM55-HR Premium, Hidden Marine Source Unit with Built-in Amplifier

Model: MM55-HR
  • Tough, water-resistant (IP67-rated) design and construction to withstand the elements
  • Intuitive interface for easy operation while docked or underway
  • Nine channels of audiophile-quality preamp outputs (4-volt RMS) from three separate audio zones, each with a dedicated subwoofer output
  • Built-in amplifier generates 100 watts (25 watts x 4) of high-fidelity sound for zones 1 and 2
  • Digital AM/FM radio tuner with radio data system extended display info
  • Built-in DAB+ radio (Europe) tuner (subject to local availability)
  • Store up to 18 favorite stations (across all tuners) for quick selection
  • Stream audio with BLUETOOTH wireless technology and the Qualcomm(R) aptXTM audio codec for amazing audio fidelity with compatible devices
  • USB 2.0 direct-digital connections can access music files on your USB storage device with 1 amp charging output
  • Auxiliary inputs accept analog audio signals directly from external sources
  • NMEA 2000 network-certified: MFD control functionality uses applicable network cables and connectors (sold separately)

Engineered to deliver superb sonic excellence from integrated vessel applications, MediaMaster 55-HR is a premium hideaway receiver with all the features of the MediaMaster 55 source unit, less the physical controls and display screen. Outfitted with certified NMEA 2000(R) network connectivity, the MediaMaster 55-HR hideaway receiver can be controlled by your Garmin, Lowrance, Raymarine or Simrad multifunction Display (MFD) or a JL Audio MMR-40 network controller (sold separately).

For uninterrupted enjoyment of your favorite stations and soundtracks, a variety of source and media options are on hand, including global radio tuners, a USB input, analog AUX input and streaming audio capabilities, courtesy of BLUETOOTH(R) wireless technology. Audio output options include a robust 4-channel onboard amplifier, capable of powering your speakers with 100 watts (25-watt RMS x 4) of pure sonic delight. Nine channels of audiophile-quality preamp outputs from three separate audio zones are also included, each with a dedicated subwoofer output. Each zone includes an array of flexible audio options and is controlled by a configurable master volume for quick, on-the-fly adjustments, allowing complete command over different areas of your boat.

Specifications
Input Operating Voltage
10 - 16 VDC
Standby Current Draw100 mA
Operating Current Draw15 A
Recommended Fuse Value15 A
Remote Turn-on Capacity500 mA (max)
Operating Temperature Range-4 F to +149 F (-20 C to +65 C)
Output ChannelsOne stereo pair and mono subwoofer RCA plugs per zone
Output ZonesRelative, Absolute, Fixed or Off
Maximum Output Voltage4V RMS (Relative or Absolute), Selectable 4V/2V/1V RMS (Fixed)
Tuner
FM Tuner with RDS87.5 MHz to 107.9 MHz (0.2 MHz step)
AM Tuner530 kHz to 1710 kHz (10 kHz step)
DAB+ Tuner170 MHz to 230 MHz
Favorites18 presets across all tuners
Bluetooth(R)
ProfileA2DP v1.2, AVRCP v1.4
Core SpecificationVersion 2.1 + EDR
CodecSBC, Qualcomm(R) aptXTM audio
Connection RangeUp to 35 feet (11 m)
USB
InterfaceUSB 2.0 host
Maximum Current Output1 A
Supported Audio FormatsMP3, MP4, WAV, AAC, M4A, M4B
Physical Specifications
Width7.68 in / 195 mm
Depth4.96 in / 126 mm
Height2.28 in / 58 mm

What's in the Box:
  • MM55-HR Mediamaster
  • Powercord
  • #8 x 1 in screw x 4
Specs
Brand
JL Audio
SKU
JLA0100337200
Category
Marine Audio Components
Weight
2 lbs
Dimensions
4.96 x 7.68 x 2.28
Price
$395.00
Availability
In stock (8 available)
Rating
0 / 5.0
Contact
Questions? Call us +1-254-358-0017 · Toll-Free (945) 427-9519
