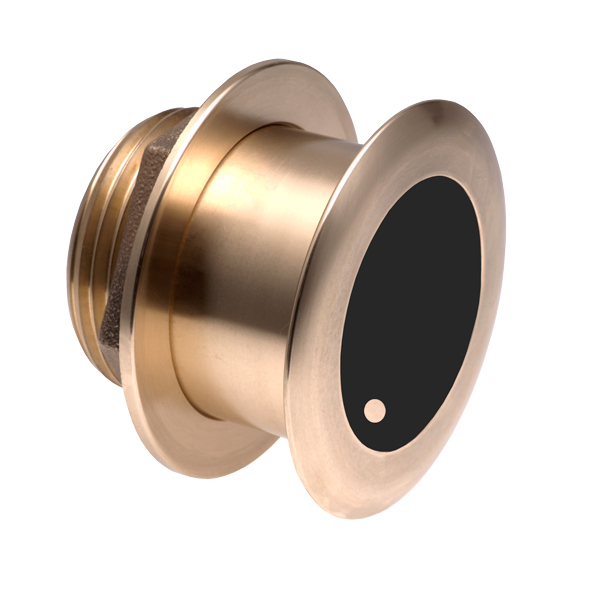

Garmin 010-12181-22 B175HW 20Deg Tilt Bronze Thru Hull 8-Pin
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
Garmin B175CHW 20Deg Tlilted Element Bronze Thru-Hull with 8-Pin
Model: 010-12181-22Step up to 1 kW without a fairing with this flush-mounted bronze housing that protrudes less than 1/4-inch outside the hull and can sit on the trailer rollers/bunks without damage.
The tilted element inside the transducer accommodates all hull deadrises and eliminates the need for a fairing block. Low, medium, high, and high wide versions provide maximum flexibility for the choice of frequencies.
An excellent choice for fiberglass and wood hulls, this 8-pin transducer has a depth of 600 feet; an operating frequency of 150-250 kHz; a beamwidth of 25 degrees; and a 16 to 24 degree deadrise.
Specifications| 39 ft | |
| Depth/Temperature | Yes |
| Power | 1kW |
| Frequency | 150-250 kHz |
| Supported deadrise/Transom angles | 16 deg-24 deg degree deadrise |
| Maximum depth | 600 ft. |
| Number of pins | 8-pin |
| Beamwidth | 25 deg |
Specs
- Brand
- Garmin
- SKU
- KIQ-81891
- Category
- Thru-Hull Transducers
- Weight
- 10.8 lbs
- Dimensions
- 6.5 x 4.5 x 2.0
- Price
- $1,449.99
- Availability
- In stock
- Rating
- 0 / 5.0
