Garmin 010-11051-30 DST820 Smart Transducer with Plastic Housing

Name: Garmin 010-11051-30 DST820 Smart Transducer with Plastic Housing
Brand: Garmin
SKU: VDW-85547
Price: 400.00 USD
Availability: InStock
Rating: 4.6 (23 reviews)

Brand: Garmin SKU: VDW-85547

Availability: In Stock Ships same day if ordered by 12 pm

4.6 (23 reviews)

$400.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

4.6 / 5 0 reviews

In Stock Ships fast

Garmin Authentic part

Description

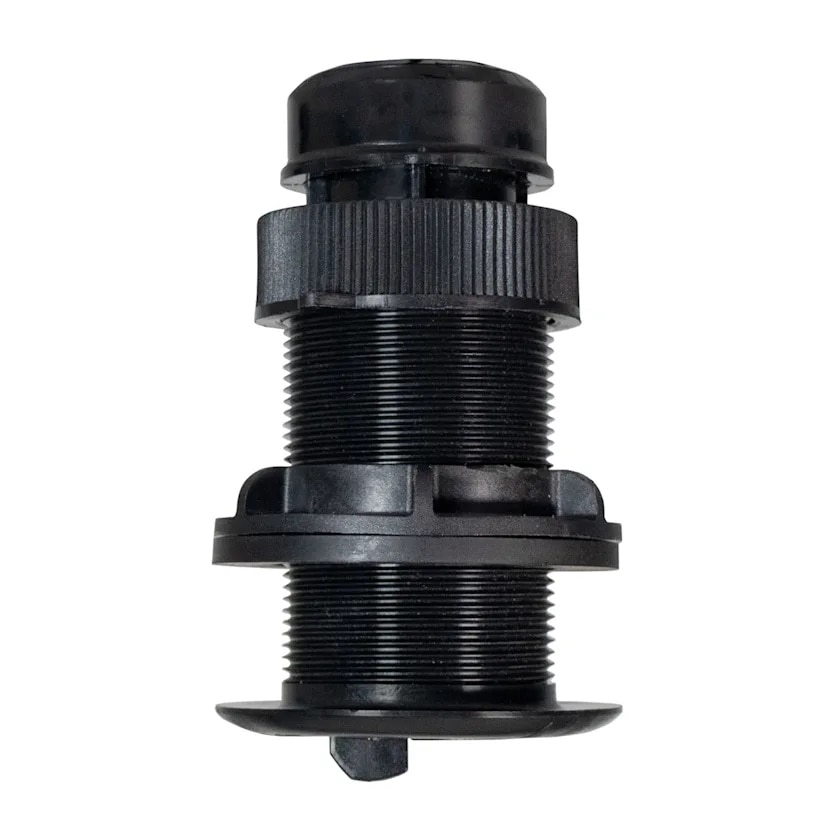

Garmin DST820 Smart Transducer with Plastic Housing

Model: 010-11051-30

This plastic thru-hull NMEA 2000® smart transducer combines precise depth, speed and temperature signals with attitude sensing for heel/trim and pitch/roll data. It can read depths to 330 feet and offers fast 5 Hz water speed signal output for smoother visualization on compatible chartplotters or other displays.

Wireless Bluetooth® connectivity makes it easy to manage calibration of sensor data through the AIRMAR Cast™ app interface. And the 235 kHz sensor operating frequency helps prevent mutual interference with other echosounder devices on the vessel. The transducer’s wide, fan-shaped beamwidth of 10 x 44 degrees enables it to find bottom even when installed on steep deadrise hulls or heeling sailboats.

Specifications

General
Transducer frequency	235 kHz
Transducer power	100 W
Transducer beamwidth	10 x 44 degrees
Transducer maximum depth	330 ft
Transducer depth/speed/temperature	Depth, Temperature and Speed
Connector	NMEA 2000
Transducer supported deadrise/transom angles	0 to 22 degrees
Transducer Support
Transducer frequency	235 kHz
