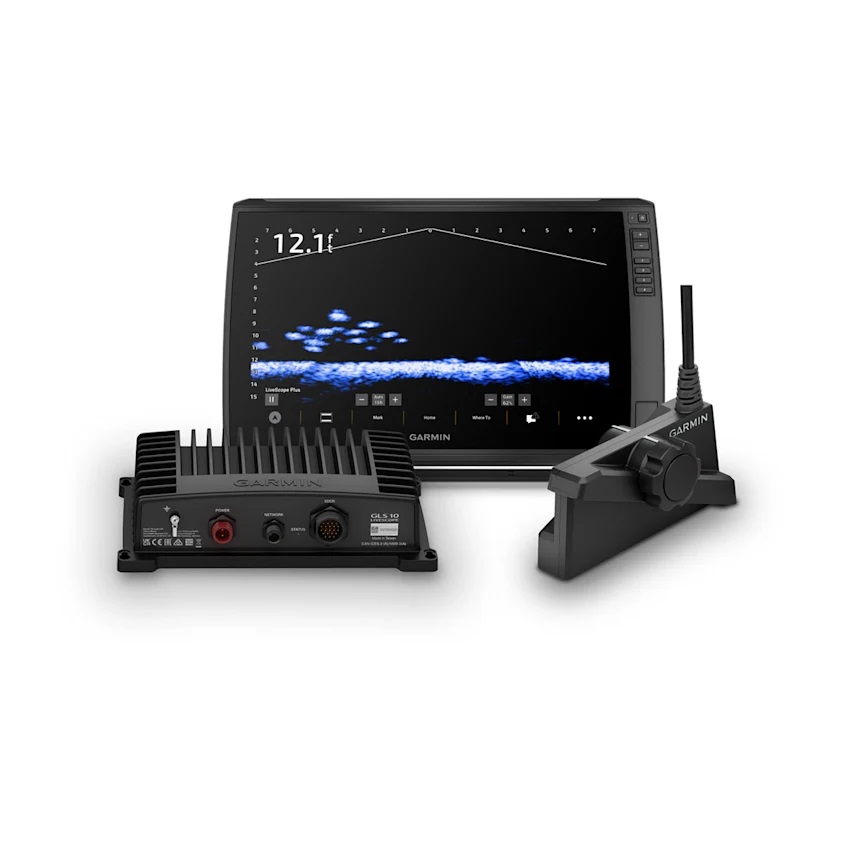

Garmin 010-03386-02 ECHOMAP 2 166sv ICE House System
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
Garmin ECHOMAP Ultra 2 166sv ICE House System WITH ICE House System
Model: 010-03386-02- 16-INCH FULL HD IPS TOUCHSCREEN DISPLAY
- SHARE TO YOUR TV OR EXTERNAL DISPLAY VIA HDMI OUTPUT
- LIVESCOPETM FORWARD AND LIVESCOPETM DOWN MODES
- PRELOADED WITH GARMIN NAVIONICS+TM MAPPING OF 25,000+ INLAND AND COASTAL LAKES
Upgrade your on-ice experience with the ECHOMAP Ultra 2 16-inch chartplotter, LiveScope Plus System and everything else you'd want to help you catch more fish.
ECHOMAP ULTRA 2 16-INCH: This chartplotter features a 16-inch full HD IPS display with touchscreen, mapping and HDMI output, so you can display sonar on your TV or external display.
ICE HOUSE SYSTEM: Get a GLSTM 10 sonar black box with swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible - even in freezing conditions.
LIVESCOPE MODES: With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.
GARMIN NAVIONICS+ MAPPING: Get coverage for more than 25,000 lakes with preloaded coastal and inland mapping.
CUSTOM COMBOS: Create custom pages that combine sonar and maps on your display.
BUILT-IN SONAR: See below and around your boat with built-in sonar capabilities, whether you're on the ice or the open water.
Specifications| 16.9in x 10.5in x 3.14in (43.0 x 26.6 x 8.0 cm) | |
| Weight | 9.5 lbs (4.31 kg) |
| Water rating | IPX7 |
| Touchscreen | Yes |
| Display Type | FHD, IPS |
| Display Size | 13.6in x 7.7in; 15.6in diagonal (34.5 cm x 19.5 cm; 39.7 cm diagonal) |
| Display resolution | 1920 x 1080 pixels |
| Input | Touchscreen with Keyed Assist |
| Maps & Memory | |
| Accepts Data Cards | 2 microSD cards |
| Waypoints | 5000 |
| Track points | 50,000 |
| Tracks | 50 saved tracks |
| Navigation Routes | 100 |
| Ice Fishing Details | |
| Included transducer | LiveScope Plus System with LVS34-IF |
| Transducer holding feature | Pole mount |
| Sonar Features | |
| Power output | 600 W |
| Traditional sonar (dual frequency/beam) | Built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| ClearVu | Built-in 260/455/800/1000/1200 kHz |
| SideVu | Built-in 260/455/800/1000/1200 kHz |
| PanoptixTM sonar | Yes |
| LiveScope | Yes |
| Connections | |
| NMEA 2000(R) ports | 1 |
| Video output ports | 1 HDMI |
| Garmin Marine Network Ports | 2 |
| 12-pin transducer ports | 12-pin scanning sonar |
| Bluetooth pairing | Yes |
| ANT (Connectivity) | Yes |
| Garmin Wi-Fi network (local connection) | Yes |
| Input Voltage | 9 to 18 Vdc |
What's in the Box:
- ECHOMAPTM Ultra 2 166sv with preloaded Garmin Navionics+TM Inland, Coastal and Offshore Mapping for U.S. or Canada
- LiveScopeTM Plus LVS34-IF transducer
- GLSTM 10 black box sonar module with power and network cables
- Ice fishing pole mount
- 0 deg shaft mount
- Power and network cables
- Hardware
- Documentation
Specs
- Brand
- Garmin
- SKU
- 7E1-63079
- Category
- Chartplotters & Fishfinders
- Weight
- 42 lbs
- Dimensions
- 6.0 x 4.0 x 1.0
- Price
- $6,000.00
- Availability
- In stock
- Rating
- 4.6 / 5.0
