Garmin 010-02092-51 GPSMAP 8612xsv 12in Comb US and Canada GN+

Garmin 010-02092-51 GPSMAP 8612xsv 12in Comb US and Canada GN+

Garmin SKU: 9IM-25056 (5)
$2,895.00 /each
In Stock — get it by Sun, Aug 9
  • Shipping charges may apply
  • Usually ships within 3 days
  • Restocking fees may apply

Can't find the exact part? Request it and we'll source it for you.

Request Part
Product Highlights
Warranty Manufacturer backed
4.6 / 5 5 reviews
In Stock Ships fast
Garmin Authentic part
Description

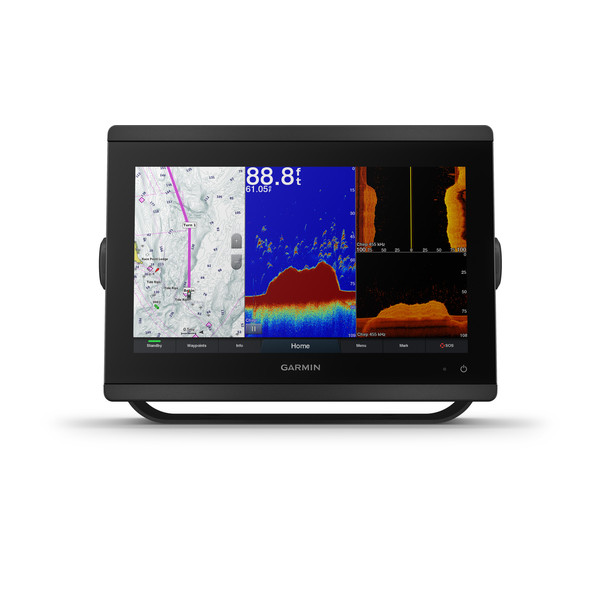

Garmin GPSMAP8612xsv 12 in Chartplotter/Sonar Combo with Full HD In-plane Switching (IPS) Touchscreen and Garmin Navionics+ coastal and inland water charts for the U.S. and Canada

Model: 010-02092-51
  • Features a 12 in full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses
  • Built-in support for the full suite of Garmin sonar capabilities, including CHIRP traditional, ClearVüTM and SideVüTM scanning sonars, Ultra High-Definition scanning sonar (no black box required), and the full line of live sonar products (transducers sold separately)
  • Adds a stunning appearance with ability to install multiple displays either flat mounted edge- to-edge to create a sleek glass helm look or mounted flush
  • Fully network capable with NMEA 2000(R) connectivity and the Garmin Marine Network to easily build your marine system - from sonar, radar and autopilots to instruments, cameras and multimedia
  • Fully network capable with NMEA 2000(R) connectivity and the Garmin Marine Network to easily build your marine system - from sonar, radar and autopilots to instruments, cameras and multimedia
  • See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway
  • For full control of your boat on your chartplotter screen, use our exclusive OneHelmTM feature to connect to many compatible third-party devices
  • Preloaded Garmin Navionics+TM coastal charts and inland mapping feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations); plus, there's support for optional Garmin Navionics Vision+TM premium map content.
  • SmartModeTM station controls enable presets for one-touch access to docking, cruising, fishing, anchoring and more
  • Built-in Garmin SailAssistTM features provide data, displays and prerace guidance needed to gain a competitive edge
  • Use built-in Wi-Fi(R) networking to pair with the free ActiveCaptain(R) smartphone app for access to the OneChartTM feature, smart notifications, Garmin QuickdrawTM Community data and more.
  • Dual microSDTM card slots on back of unit for use with the ActiveCaptain(R) app and mapping cards

The GPSMAP(R) 8612xsv chartplotter features a 12 in full HD in-plane switching touchscreen display for wider viewing angles, superior clarity and sunlight readability, even with polarized sunglasses. It offers built-in support for our industry-leading sonar, including dual-channel 1 kW traditional CHIRP, CHIRP ClearVüTM and CHIRP SideVüTM scanning sonars plus built-in support for Ultra High-Definition scanning sonar (no black box required). There's also built-in support for LiveScopeTM sonar and the full line of live sonar products (transducers sold separately). The device is preloaded with Garmin Navionics+TM coastal charts and inland mapping that feature Auto Guidance+TM technology (Auto Guidance+ is for planning purposes only and does not replace safe navigation operations) for helping you get where you need to go. Plus, there's support for optional Garmin Navionics Vision+TM premium map content. Experience superior connectivity and networking solutions with complete control of your entire system, right at your fingertips. The chartplotter includes a premium-performance processor for our fastest map drawing, superior networking, video distribution and more. Multiple displays can be flat mounted edge-to-edge to create a sleek glass helm look or mounted flush. NMEA 2000(R) networking and the Garmin Marine Network allow you to build your full marine electronics suite - from radar and autopilots to cameras and instruments - controlled from your chartplotter and shared across multiple screens. With SmartModeTM station controls, everything is designed to give you quick, one-touch access to the information you need to ease high-stress situations such as docking. For full control of your boat on your chartplotter screen, use OneHelmTM to connect to many compatible third-party devices. Built-in Garmin SailAssistTM features provide data, displays and prerace guidance needed to gain a competitive edge. Download the ActiveCaptain(R) app to your smartphone or tablet to manage your marine experience from anywhere - from trip planning and prefishing to purchasing, downloading and updating maps. See RPMs, fuel flow, temperature, trim and more for up to four of your compatible Mercury(R) engines by using the SmartCraft(R) Connect gateway.

Specifications
Physical dimensions
11.9 x 8.5 in x 3 in (30.3 cm x 21.6 cm x 7.6 cm)
Weight6.0 lbs.
Water ratingIPX6 and IPX7
Display typetouchscreen IPS display (anti-glare finish)
Display size10.1 in x 5.7 in (25.7 cm x 14.5 cm)
Display resolutionFHD; 1920 x 1200 pixels
Power consumption3.1 A
AntennaInternal or external over NMEA 2000
Mounting optionsBail
Specs
Brand
Garmin
SKU
9IM-25056
Category
Chartplotters & Fishfinders
Weight
13.17 lbs
Dimensions
11.9 x 8.5 x 3
Price
$2,895.00
Availability
In stock
Rating
4.6 / 5.0
