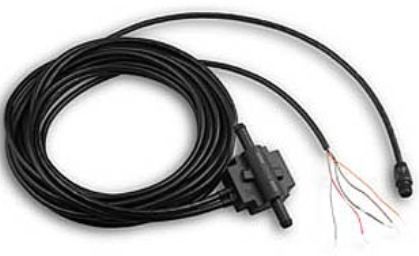

Garmin 010-00671-00 GFS10 Fuel Sensor
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
Add fuel tracking capabilities to your Garmin chartplotter and optimize your boat's fuel economy. The GFS 10 tracks fuel flow use and sends the data to your chartplotter via the Garmin CANet or NMEA 2000.
Unlike other fuel flow sensors, the GFS 10 will include fuel level sensing capability when connected to an existing analog fuel gauge or resistive fuel tank sensor. Maximum fuel flow rate for the GFS 10 is 50 gallons per hour, and the minimum flow rate is two gallons per hour.
- Design: 3/8 in barbed fittings
- Maximum flow rate: up to 50 GPH per engine
- Minimum flow rate: 2 GPH
- Maximum back pressure: 0.5 PSI at 20 GPH/1.0 PSI at 40 GPH
- Supply voltage: 10-22 V
- Fire resistant: Yes. Complies with U.S. Coast Guard standards
Note:
GPSMAP 4xx and 5xx series CANet? compatible units require a CANet? kit to complete the connection.
The GFS 10 does not work with diesel engines.
Specs
- Brand
- Garmin
- SKU
- 52R-84653
- Category
- Vessel Monitoring & Gateways
- Weight
- 2.11 lbs
- Dimensions
- 14.0 x 11.5 x 9.5
- Price
- $1,049.99
- Availability
- In stock
- Rating
- 0 / 5.0
