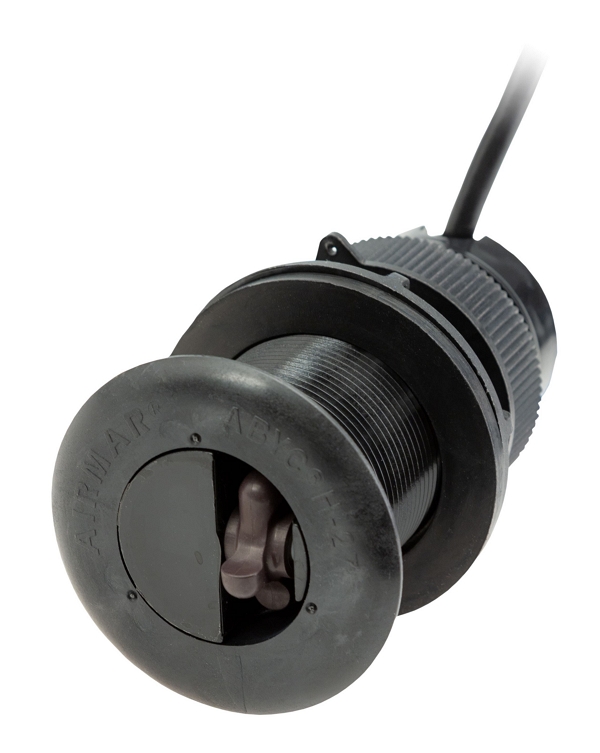

Furuno DST-810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Name: Furuno DST-810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull
Brand: Furuno
SKU: FURDST810PSF
Price: 445.00 USD
Availability: OutOfStock

Brand: Furuno SKU: FURDST810PSF

Availability: Call for pricing Ships fast from our US warehouses

$445.00 /each

Currently out of stock

Call or email us for pricing, lead time and alternatives — we source this part on request.

Call for pricing Request this part

Or email sales@texpertdeals.us

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

Call for pricing Talk to our team

Furuno Authentic part

Description

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.

Model: DST-810PSF

5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
Integrated attitude sensor for heel and trim benefits sailing and power boats
Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
DST810 stores configurations and delivers data to the NMEA 2000(R) network.
Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
Popular depth sensor for shallow water performance.

Specifications
Acoustic Window

Urethane
Hull Deadrise	Up to 22 deg
Data Update Rate	Depth 1X/second
Data Update Rate	Speed 5X/second
Attitude Accuracy	+/- 1 deg nominal after sensor calibration
Depth Frequency	235 kHz
Minimum Depth Range	0.5 m (1.6 feet)
Maximum Depth Range	Up to 100 m (330 feet)-NMEA 2000(R)
Speed Range	Up to 45 knots
Pressure Rating	3 m (10 feet)
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Supply Voltage	9 VDC to 16 VDC-per NMEA 2000
Supply Current	<200 mA-per NMEA 2000(R)
Wireless Protocol	Bluetooth Low Energy (BLE)
Wireless Range	Up to 30 feet depending on mount location
Standard Cable Length	6 m (20 feet) DeviceNet-NMEA 2000(R)
Temperature Sensor Accuracy	+/-0.5 degC (+/-1.8 degF)
Temperature Sensor Range	-10 degC to 40 degC (14 degF to 104 degF)
NMEA 2000 Load Equivalency Number (LEN)	3
