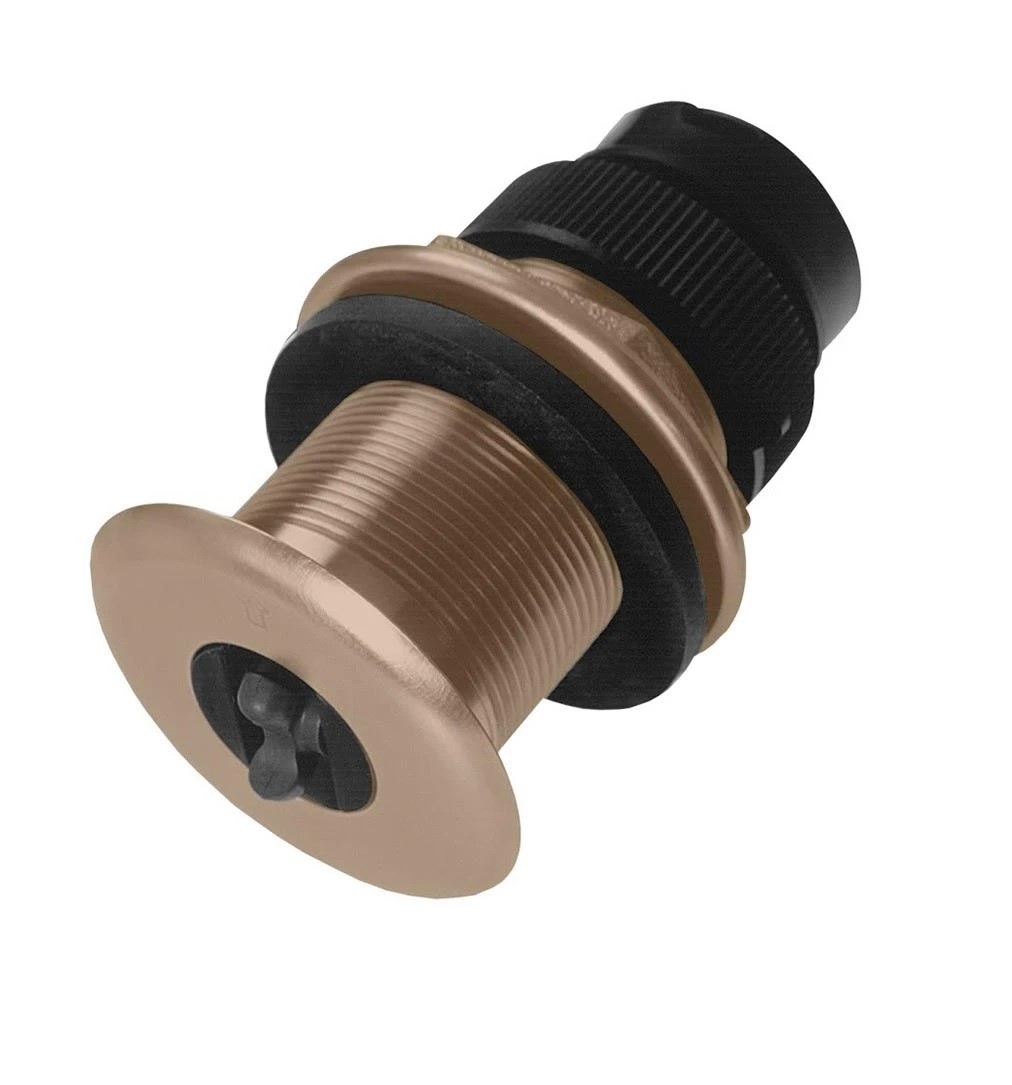

Furuno DST-810MSF NMEA 2000 Airmar Smart Transducer Bronze Thru Hull
Brand:
Furuno
SKU: UG3-25192
Availability:
In Stock
Ships same day if ordered by 12 pm
4.6
(33 reviews)
$495.00
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
4.6 / 5
0 reviews
In Stock
Ships fast
Furuno
Authentic part
Description
Furuno DST-810 active Depth, Speed, Temperature thru-Hull Bronze 235 kHz transducer.
Model: DST-810MSF- 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
- Integrated attitude sensor for heel and trim benefits sailing and power boats
- Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
- DST810 stores configurations and delivers data to the NMEA 2000(R) network.
- Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
- Popular depth sensor for shallow water performance.
| Urethane | |
| Hull Deadrise | Up to 22 deg |
| Data Update Rate | Depth 1X/second |
| Data Update Rate | Speed 5X/second |
| Attitude Accuracy | +/- 1 deg nominal after sensor calibration |
| Depth Frequency | 235 kHz |
| Minimum Depth Range | 0.5 m (1.6 feet) |
| Maximum Depth Range | Up to 100 m (330 feet)-NMEA 2000(R) |
| Speed Range | Up to 45 knots |
| Pressure Rating | 3 m (10 feet) |
| Pulse Rate | 20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile |
| Supply Voltage | 9 VDC to 16 VDC-per NMEA 2000 |
| Supply Current | <200 mA-per NMEA 2000(R) |
| Wireless Protocol | Bluetooth Low Energy (BLE) |
| Wireless Range | Up to 30 feet depending on mount location |
| Standard Cable Length | 6 m (20 feet) DeviceNet-NMEA 2000(R) |
| Temperature Sensor Accuracy | +/-0.5 degC (+/-1.8 degF) |
| Temperature Sensor Range | -10 degC to 40 degC (14 degF to 104 degF) |
| NMEA 2000 Load Equivalency Number (LEN) | 3 |
What's in the Box:
- DST-810 Insert
- Bronze Housing
Specs
- Brand
- Furuno
- SKU
- UG3-25192
- Category
- Thru-Hull Transducers
- Weight
- 2.05 lbs
- Dimensions
- 6.0 x 4.0 x 2.0
- Price
- $495.00
- Availability
- In stock
- Rating
- 4.6 / 5.0
