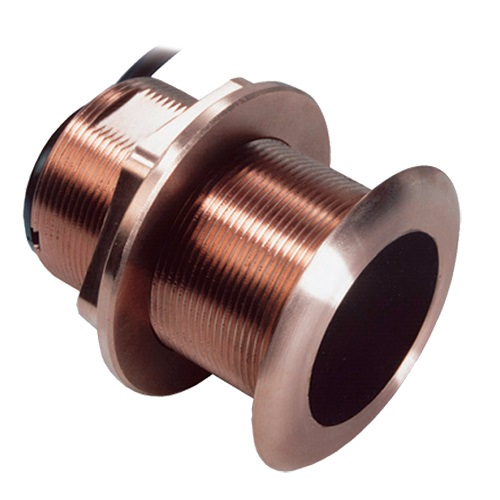

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Furuno 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Brand: Furuno SKU: NDL-21784
Availability: In Stock Ships same day if ordered by 12 pm
4.9 (11 reviews)
$285.00 /each
Visa Mastercard American Express Discover PayPal Apple Pay Google Pay Shop Pay Secure Checkout
100% Genuine Parts Manufacturer Warranty Ships from USA
Secure Payments
30DAY Easy Returns
Fast Shipping

Can't find the exact part? Request it and we'll source it for you.

Request Part
Product Highlights
Warranty Manufacturer backed
4.9 / 5 0 reviews
In Stock Ships fast
Furuno Authentic part
Description

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

Model: 520T-BLD
  • depth and temperature
  • 600 W
  • 50 kHz with a wide 45 deg beamwidth for performance to 353 m (1,200 feet)
  • 200 kHz with a 12 deg beamwidth for performance to 206 m (700 feet)
  • Right-angle cable exit saves space and protects transducer if stepped on
  • Included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
  • 30 Foot Cable with 10-Pin Connector
Specifications
Weight
0.9 kg (2.0 lb.)
Recommended Boat LengthUp to 8 m (25 feet)
Hull MaterialFiberglass or wood
Hull DeadriseBest performance through 7 deg. Can accommodate up to a 12 deg.
Acoustic WindowUrethane
Hole Diameter 51 mm (2)
"
Specs
Brand
Furuno
SKU
NDL-21784
Category
Thru-Hull Transducers
Weight
2 lbs
Dimensions
6.0 x 4.0 x 3.0
Price
$285.00
Availability
In stock
Rating
4.9 / 5.0
