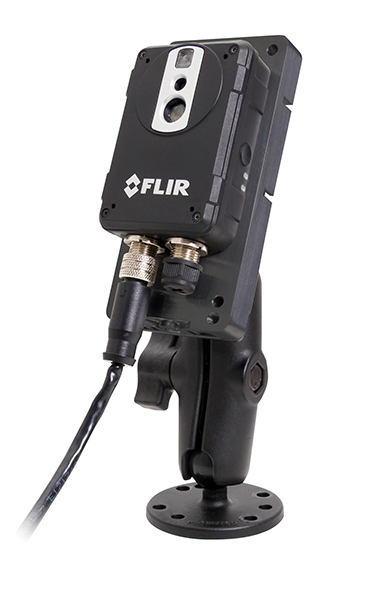

FLIR E70321 MTMS Thermal Camera

Name: FLIR E70321 MTMS Thermal Camera
Brand: FLIR
SKU: FLIE70321
Price: 1495.00 USD
Availability: InStock

Brand: FLIR SKU: FLIE70321

Availability: In Stock 4 available Ships fast from our US warehouses

$1,495.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

FLIR Authentic part

Description

FLIR AX8 Thermal Monitoring Camera

Model: E70321
UPC: 723193799109

State-of-the-art thermal monitoring of engines and onboard machinery
Powered by Lepton, FLIR's most advanced micro thermal camera
Exclusive Multi-Spectral Dynamic Imaging (MSX(R)) for easy-to-understand thermal imagery.
Stream live thermal video of exhaust manifolds, propeller shafts, electrical panels, and other machinery
Program specific areas to generate automated spot alarms when temperatures exceed pre-set thresholds
Evaluate ongoing temperature trends
Help avoid costly repairs and unwanted breakdowns
View thermal, visible, and MSX video imagery on Raymarine LightHouse IITM MFDs
Continuous thermal monitoring with audible and visual alarms across the Raymarine network
Connect up to eight AX8 cameras using Ethernet
View and record thermal video and snapshots from any Raymarine display on the network
Easy setup and alarm programming with a PC and web browser

Gain an entirely new view of your vessel's mechanical system with the new FLIR AX8 thermal monitoring camera. Combining thermal and visible cameras in a small, affordable package, the AX8 integrates with Raymarine multifunction displays (MFDs) and sends audible and visual alerts when the temperature of machine parts rise above preset thresholds.

Keep a watchful eye on such critical equipment as engines, exhaust manifolds, and shaft bearings and spot problems before they leave you stranded on the water. And FLIR's exclusive MSX(R) imaging blends visible and thermal images for more detailed imagery that is easier to understand.

Specifications
IR Resolution

80x60 pixels
Thermal Sensitivity / NETD	<0.10 degC @ +30 degC (+86 degF) / 100mK
Field of View (FOV)	48 deg x 37 deg
Focus	Fixed
DETECTOR DATA
Detector Type	Focal Plane Array (FPA) Uncooled Microbolometer
Spectral Range	7.3-13μm
VISUAL CAMERA
Built-in Digtal Camera	640x480
Digital Camera FOV	Adapts to the IR lens
Sensitivity	Minimum 10 Lux without illuminator
MEASUREMENT
Object Temperature Range	-10 degC to +150 degC (14 degF to 302 degF)
Accuracy	+/-2 degC (+/-3.6 degF) or +/-2% of reading (+10 to +100C@+10 to +35amb)
MEASUREMENT ANALYSIS
Spotmeter	6
Area	6 Boxes with max. / min. / average
Automatic Hot / Cold Detection	Max / Min temperature value and position shown within box
Measurement Presets	Yes
Atmospheric Transmission Correction	Automatic, based on inputs for distance, atmospheric temperature and relative humidity
Optics Transmission Correction	Automatic, based on signals from internal sensors
Emissivity Corrections	Variable from 0.01 to 1.0
Reflected Apparent Temperature Correction	Automatic, based on input of reflected temperature
External Optics / Windows Correction	Automatic, based on input of optics / window transmission and temperature
Measurement Corrections	Global Object Parameters
ALARM
Alarm Functions	Automatic alarms on any selected measurement function. A maximum of 5 alarms can be set
Alarm Output	Digital Out, store image, file sending (ftp), email (smtp), notification
SET-UP
Color Palettes	Color palettes (BW, BW inv, Iron, Rain)
Set-up Commands	Data / Time, Temperature degC/ degF
Web Interface	Yes
STORAGE OF IMAGES
Storage Media	Built-in memory for internal storage
Image Storage Mode	IR, Visual, MSX
File Formats	Jpeg + FFF
ETHERNET
Ethernet	Control, result and image
Ethernet Type	100 Mbps
Ethernet Standard	IEEE 802.3
Ethernet Connector Type	M12 8-pin X-coded
Ethernet Video Streaming	Yes
Ethernet Power	Power over Ehternet, PoE IEEE 802.3as class 0
Ethernet Protocols	Ehternet/IP, Modbus TCP, TCP, UDP, SNTP, RTSP, RTP, HTTP, ICMP, IGMP, SFTP, SMTP, SMB (CIFS), DHCP, MDNS (Bonjour)
MARINE ELECTRONICS INTERFACE
Multifunction Displays	Network compatible with Raymarine LightHouse II multifunction displays
IMAGE STREAMING
Image Streaming Formats	Motion JPEG, MPEG, H.264
Image Streaming Resolution	640x480
Image Modes	Thermal, Visual, MSX (IR-image with enhanced detail presentation)
Automatic Image Adjustment	Continuous
POWER SYSTEM (POE Injector)
External Power Operations	12/24VDC, 2W continuously / 3.1W absolute max
External Power Connector	Screw Connection (12V/0V/Chassis)
Voltage Allowed Range	9-36VDC
ENVIRONMENT DATA
Operating Temperature Range	0 degC to +50 degC (32 degF to +122 degF)
Storage Temperature Range	-40 degC to +70 degC (-40 degF to +158 degF) IEC 68-2-1 and IEC 68-2-2
Humidity (Operating and Storage)	IEC 60068-2-30/24 h 95% relative humidity +25 degC to +40 degC (+77 degF to +104 degF)/ 2 cycles
Encapsulation	IP67 (IEC 60529)
