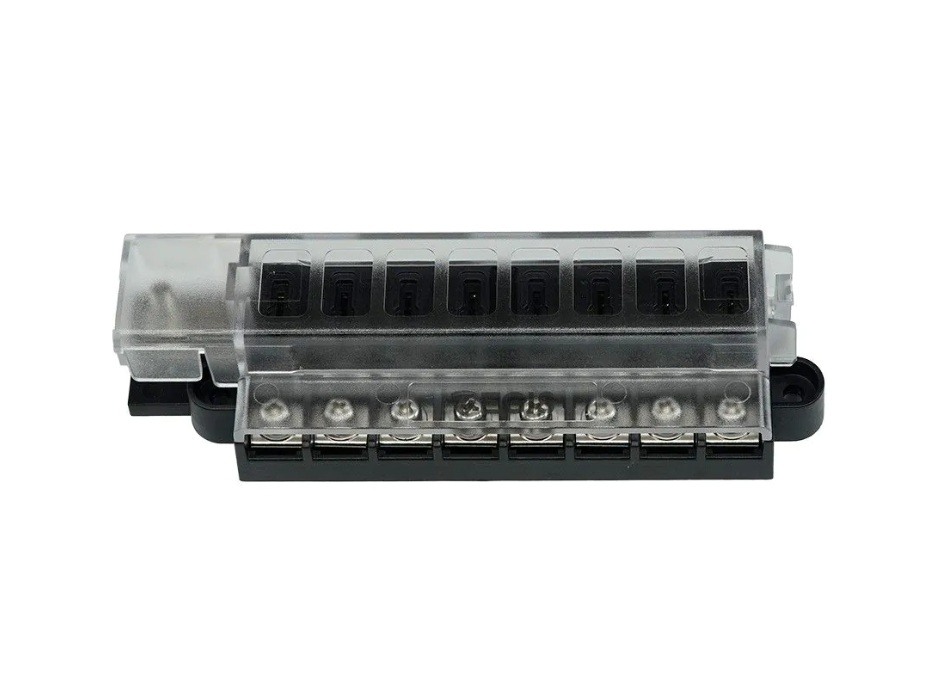

EGIS 8046 RT Fuse Block 8 Circuit with Cover
Product Highlights
Description
Egis Marine 8046 RT Fuse Block 8 Circuitsm with Cover
Model: 8046- Ignition protected when latching cover is secure for use in engine bay/combustible enviroments
- Harsh Enviroment Design with stainless steel self-locking hardware and optional weather-proof labels in standard and customized options
- Includes latching protective cover with integrated label recesses.
Compact inline 8 position fuse block has single side wire entry for tight installations spaces.
Harsh Environment design with stainless steel self-locking hardware and optional weather-proof labels in standard or customized options
Protects Branch Circuits by accepting ATO style fuses ranging from 1 through 40 Amps.
Bullet-proof Construction: Designed with high temperature materials and stainless steel self-locking hardware allow mounting anywhere on vehicle.
Supports SAE Circuit Protection Standards for thermal/short circuit events.
Includes Latching Protective Cover with integrated label recesses for easy circuit/fuse identification
Specifications| 30 | |
| Maximum Current (Entire Block) Amps | 100 |
| Nominal Voltage | 12/24Vdc |
| Maximum Voltage | 60Vdc |
| Input terminal size | M5-0.8 |
What's in the Box:
- Fuse Block
- Cover
Specs
- Brand
- Egis Mobile Electronics
- SKU
- EME8046
- Category
- Fuses & Fuse Blocks
- Weight
- 0.4 lbs
- Dimensions
- 5.0 x 4.0 x 2.0
- Price
- $44.99
- Availability
- In stock (5 available)
- Rating
- 0 / 5.0
