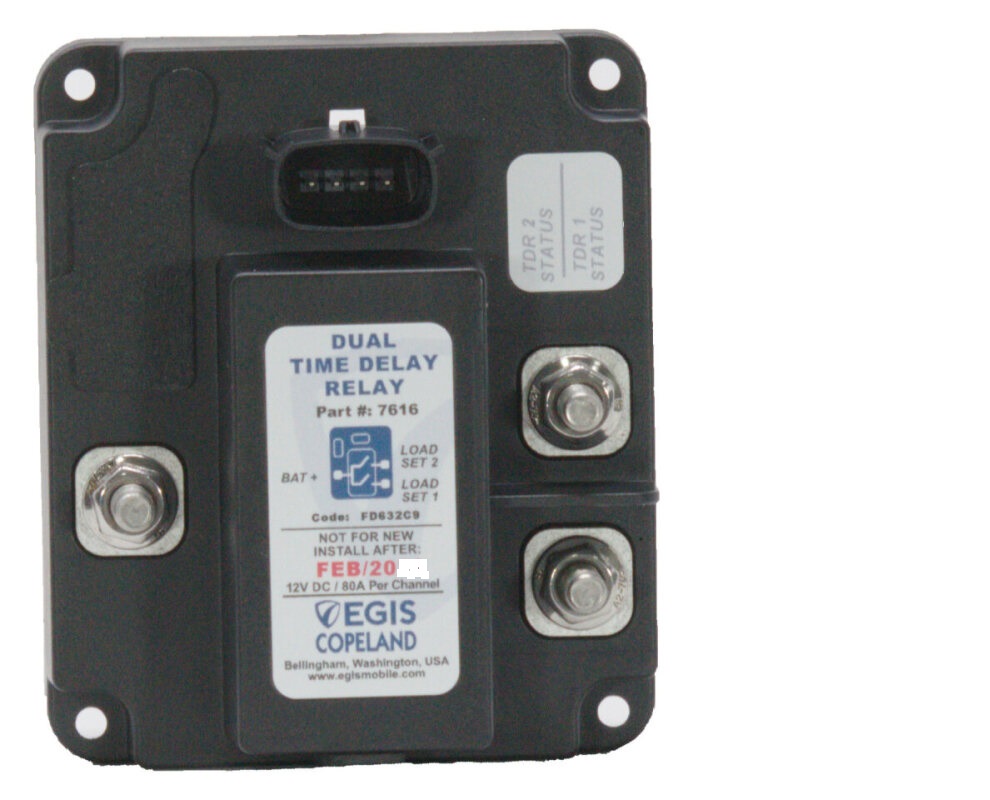

EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v
Brand:
Egis Mobile Electronics
SKU: EME7616
Availability:
In Stock
3 available
Ships fast from our US warehouses
$165.00
/each
Secure Checkout
100% Genuine Parts
Manufacturer Warranty
Ships from USA
Secure Payments
30DAY
Easy Returns
Fast Shipping
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Egis Mobile Electronics
Authentic part
Description
EGIS 7616 TDR Series Dual Output Time Delay Relay 2x80A 12v
Model: 7616- TOP SIDE DIP SWITCHES: Accessible after installation, for programming time delay and determining active features. Protected by self-retained cover.
- STAINLESS STEEL SELF-LOCKING HARDWARE: 100% Non-ferrous corrosion resistant materials. All attachment screws and nuts are self-locking.
- INTEGRAL I/O CONNECTOR: Rapid and 100% correct assembly via Molex MX-150 connector eliminates poor field connections.
- STANDARD AND OPTIONAL HARNESSES: Mating plug with 2 feet of ground and ignition wire included. Optional harnesses with additional outputs and alternate wire lengths available
- EASY INTEGRATION WITH CT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with CT series Fuse Blocks.
- EASY INTEGRATION WITH RT FUSE BLOCKS: Optional EasyLink bus bars provide reduces space and cost to connect TDRs with RT series Fuse Blocks.
- LED DIAGNOSTICS: Provides indication of pending relay OFF event due to under/over voltage or external off trigger. Output on/off status also provided.
| Continuous: 80 Amps DC per Output (160 A Total) Intermittent: 120 Amps DC (5 Minutes) per Output | |
| Off State Current Draw | 1.5 mA (less than 1 Amp-hr battery dissipation per month of stand-by) |
| Operating Specifications | Voltage: 12 Vdc Nominal (8 - 18 Vdc) Temperature: -40 to 85 Deg C |
| Product Warranty | 4 Years from date of manufacturer |
| Time Delay Options | 5 Sec through 4 hours via Dip Switches |
| Environment Protection Standards | Waterproof to IP66 . IP6K9K Ignition Protected to ISO 8846 |
| Optional Features | Optional Features |
Specs
- Brand
- Egis Mobile Electronics
- SKU
- EME7616
- Category
- Relays & Solenoids
- Weight
- 0.8 lbs
- Dimensions
- 5.0 x 4.0 x 2.0
- Price
- $165.00
- Availability
- In stock (3 available)
- Rating
- 0 / 5.0
