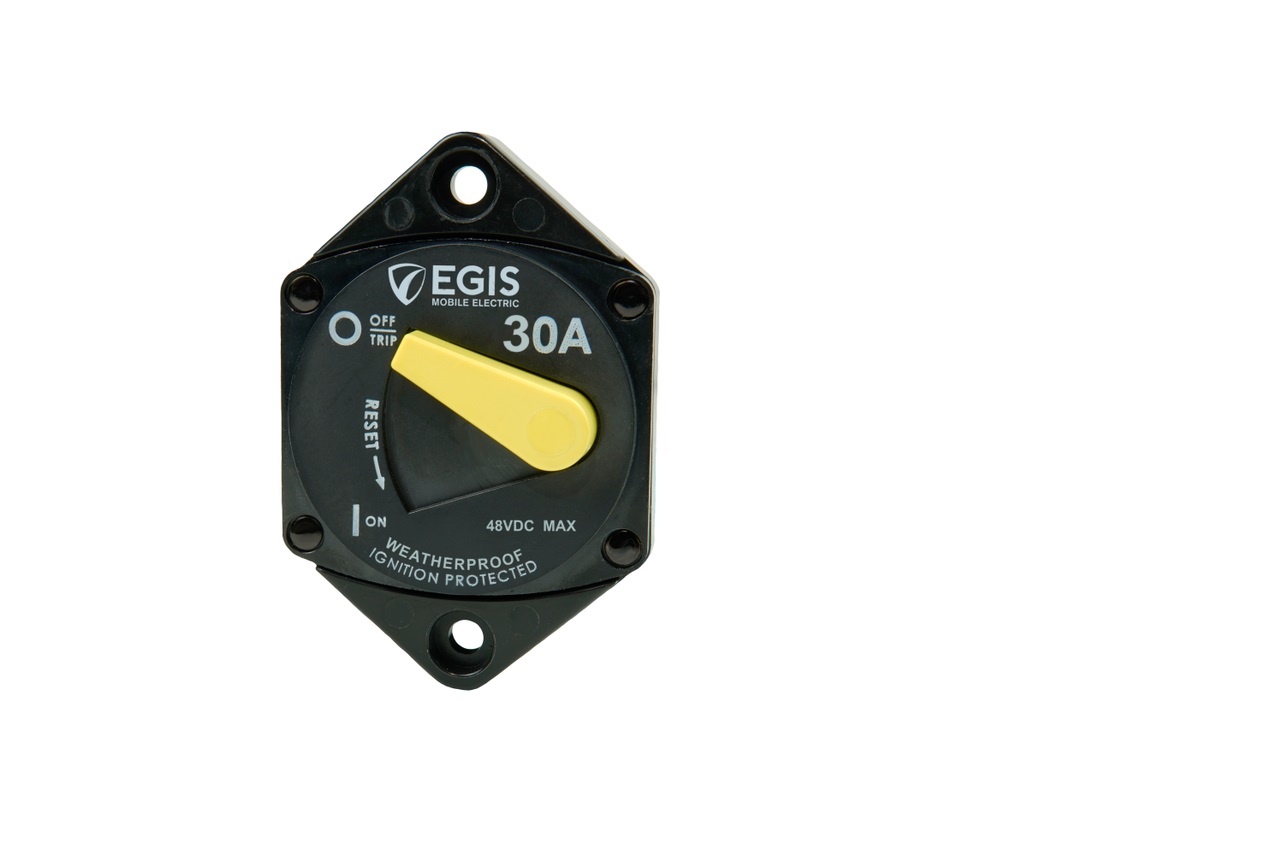

EGIS 4707-030 87-Series 30 Amp Circuit Breaker Panel Mount
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
EGIS 87-Series 30 Amp Circuit Breaker Panel Mount
Model: 4707-030- ON/OFF High Visibility Controls Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Circular Design Compatible with circular cutout enables easy in panel installation.
- Stainless Steel Hardware / Serrated Flange Nuts Corrosion and vibration resistant for harsh environment applications.
- Made in the USA of high quality components.
IP 66 Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
High Voltage (48 Vdc) Rating: easily supports 12 and 24 Vdc applications while offering advanced protection for 36 and 48 Vdc
High Electrical / Manual Switching Endurance delivers 2,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 30 | |
| MAX VOLTAGE (VDC) | 48 |
| CYCLING ENDURANCE | 2,000 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 5,000 |
| INTERRUPT CURRENT @ 28 VDC (AMPS) | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
Specs
- Brand
- Egis Mobile Electronics
- SKU
- RSW-89924
- Category
- Circuit Breakers
- Weight
- 0.33 lbs
- Dimensions
- 6.0 x 4.0 x 3.0
- Price
- $64.99
- Availability
- In stock
- Rating
- 4.5 / 5.0
