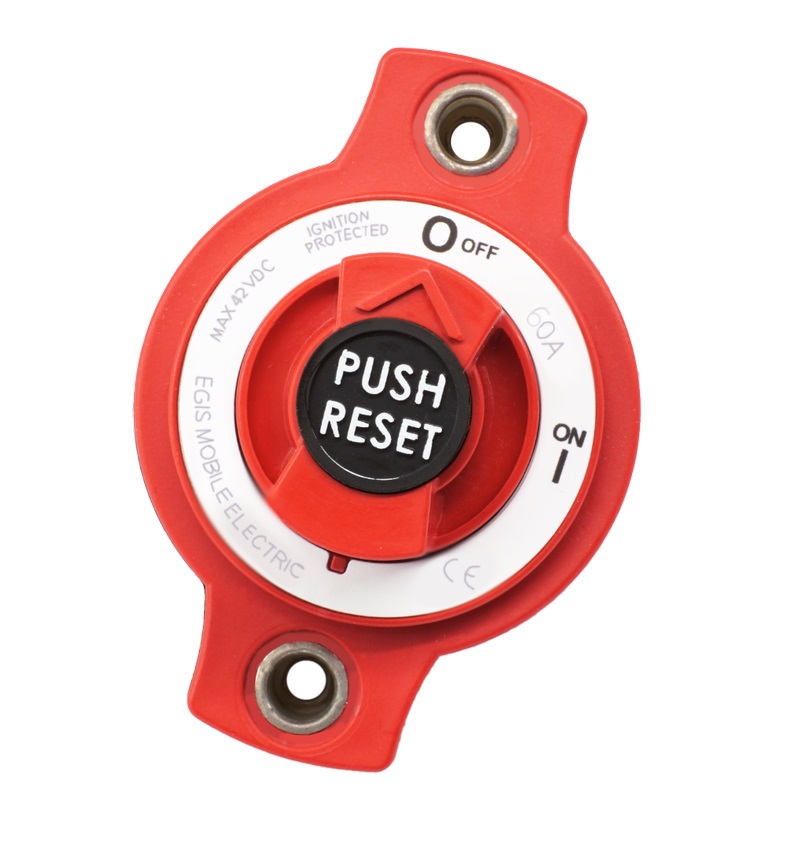

EGIS 4701-60 60A Mini Breaker Disconnect Switch Panel Mount
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Description
EGIS 60A Mini Breaker Disconnect Switch Panel Mount
Model: 4701-60- Easy ON/OFF Rotary Switch Easy to operate and visually recognize switch position.
- Stainless Steel Self- Locking Hardware Corrosion and vibration resistant for harsh environment applications.
- Weatherproof Construction Sealed against dust and moisture penetration. High temp rated for all installation locations.
- Compact Size Fit more circuit switching / protection on a smaller panel!
- Made in the USA of high quality components.
- Ignition Protected Protects against inadvertent shorts from positive terminals to adjacent grounded surfaces.
Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
42 Vdc Rating: easily supports 12, 24 and 36Vdc applications. Ideal for trolling motor switching applications.
High Electrical / Manual Switching Endurance delivers 6,000 cycles at full current
High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
4 Year Warranty: We stand behind our product's ability to meet your needs.
Specifications| 60 | |
| MAX VOLTAGE (VDC) | 42 |
| INTERRUPT CURRENT @ 14 VDC (AMPS) | 3,000 |
| Cycle Switching Endurance | 3,000 |
| INGRESS PROTECTION RATING | IP66 |
Specs
- Brand
- Egis Mobile Electronics
- SKU
- XC4-56661
- Category
- Circuit Breakers
- Weight
- 0.4 lbs
- Dimensions
- 6.0 x 4.0 x 3.0
- Price
- $285.00
- Availability
- In stock
- Rating
- 4.3 / 5.0
