Digital 1664-PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi F114 DM194

Name: Digital 1664-PW Wideband Cellular 4G/5G/LTE/WiFi Antenna 9dBi F114 DM194
Brand: Digital Antenna
SKU: DIG1664PW
Price: 345.00 USD
Availability: InStock

Brand: Digital Antenna SKU: DIG1664PW

Availability: In Stock 6 available Ships fast from our US warehouses

$345.00 /each

Secure Checkout

100% Genuine Parts Manufacturer Warranty Ships from USA

Secure Payments

30DAY Easy Returns

Fast Shipping

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Digital Antenna Authentic part

Description

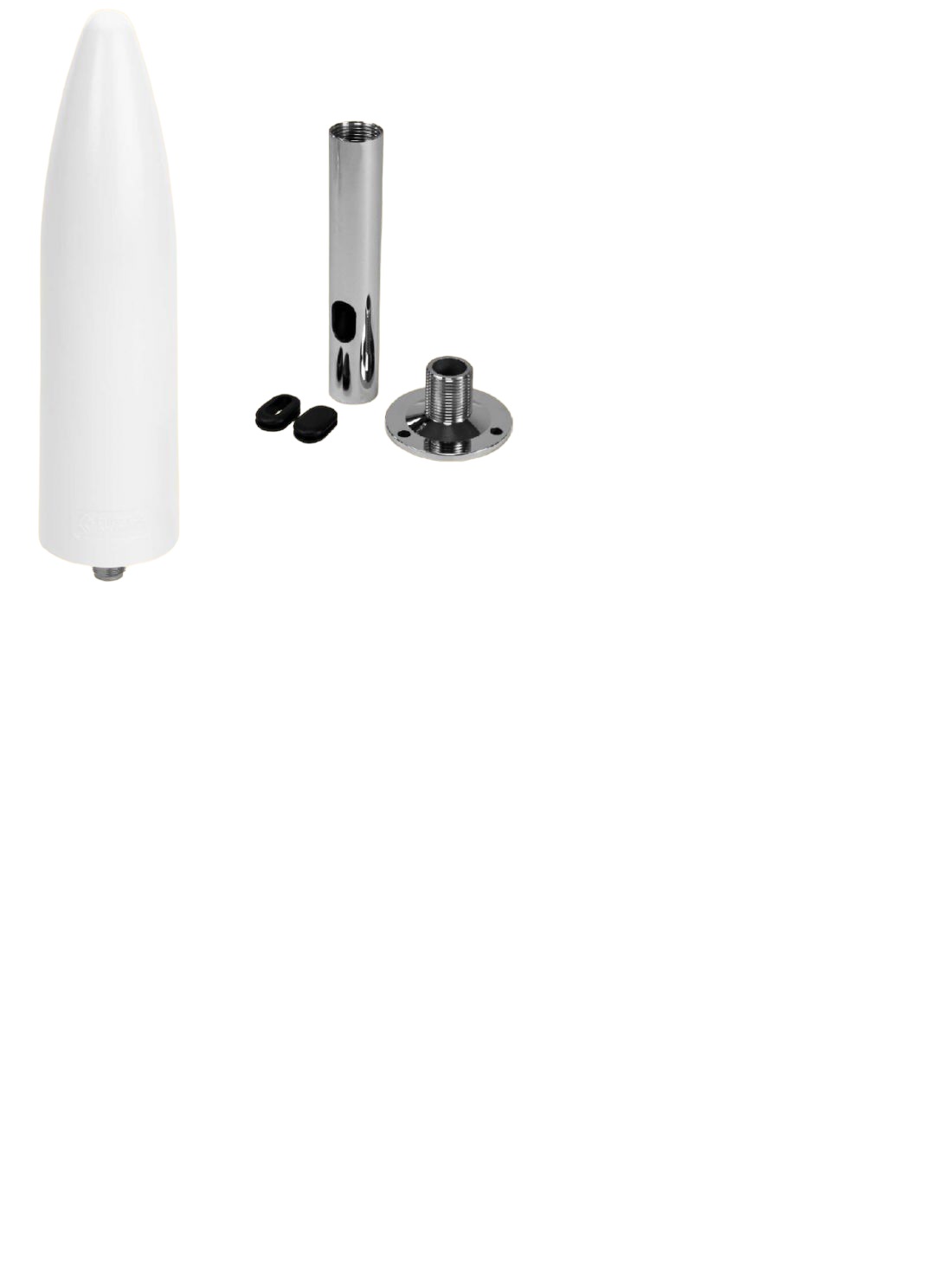

Digital Antenna 1664-PW Omni-Directional 600-3000MHZ 4G/5G/LTE/WiFi Bullet Antenna

Model: 1664-PW

Maximum power for 4G, 5G, WiFi signals
9dBi omni-directional gain
Rugged UV stable polyurethane finish
Foam filled to withstand extreme vibrations
316 stainless steel base
Includes deck mount
Weatherproof N female connector
5 year warranty

Digital Antenna's NEW omni-directional, bullet shaped antenna with stainless steel base provides excellent performance from 695-3000 MHz and is ideal for mobile or fixed locations.

High gain 9dBi bullet antenna designed and manufactured in USA by Digital Antenna, greatly improves signal strength providing maximum signal range. The new design includes a rugged stainless steel base.

For Use with any device that connects to the cellular network or WiFi such as routers, modems, amplified signal boosters & gateways.

Specifications
Radiation Pattern

Omni-Directional
Bandwidth	VSWR (in 3G, 4G, 5G bands): <1.5: 1 = 695-3000 MHZ, VSWR: <1.8: 1 = 695-3000 MHZ
Gain	9dBi
Cable	Not included
Impedance	50 ohms
Max Input Power	50 watts
Exterior Finish	White polyurethane high gloss UV stable
Dimensions	8.875 L x 2.375 in OD (225 x 60 mm
Weight	15 oz
RF Connector	N type female
Installation	Raised Stainless steel deck mount
Elements	Copper - Hand soldered
Polarization	Vertical
Wind Rating	>160KPH
Operating Temp	30o F to +175o F
