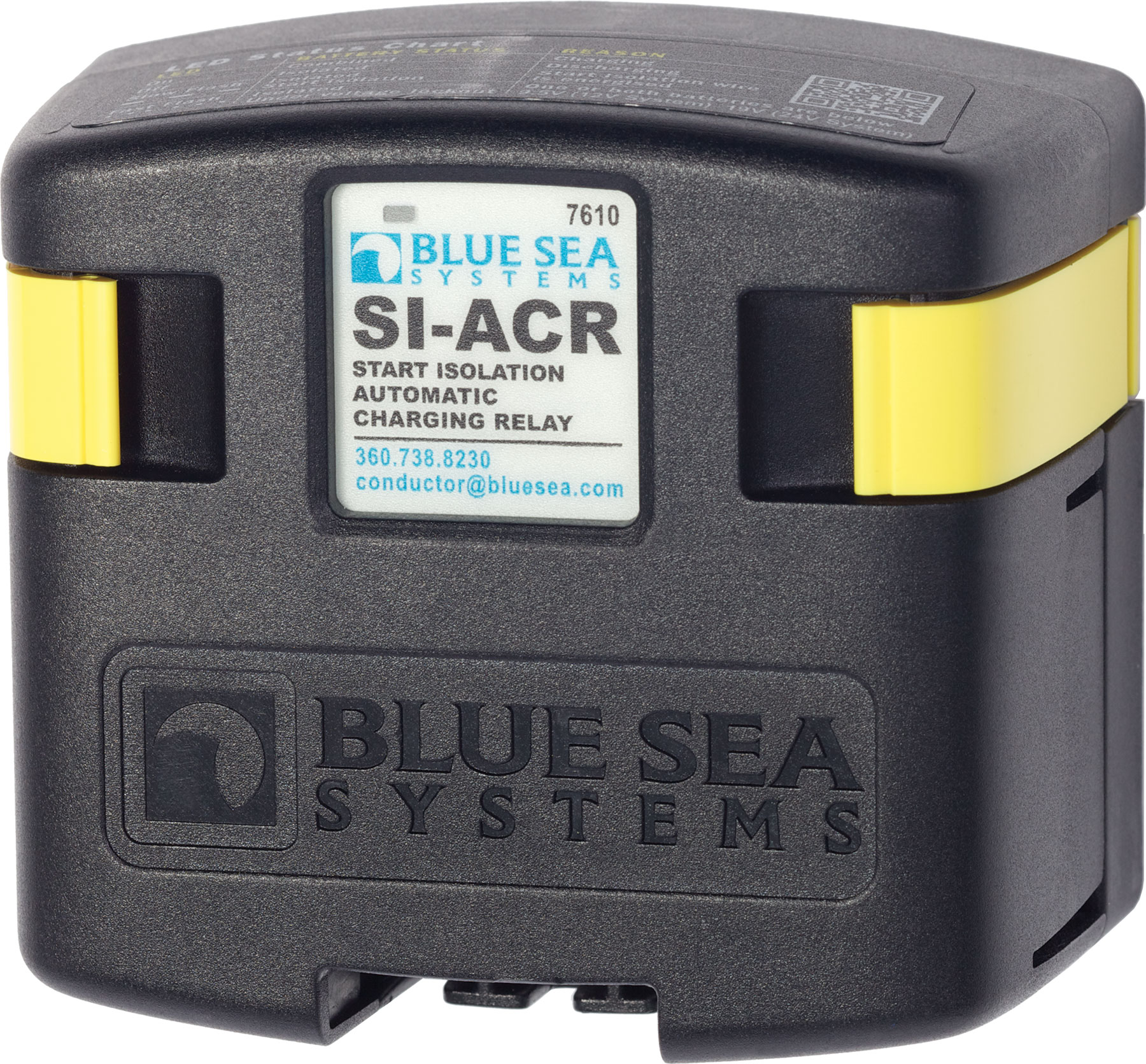

Blue Sea 7610-BSS SI-ACR Automatic Charging Relay 12/24vDC 120A

Name: Blue Sea 7610-BSS SI-ACR Automatic Charging Relay 12/24vDC 120A
Brand: Blue Sea Systems
SKU: 1SZ-87450
Price: 285.00 USD
Availability: InStock

Blue Sea Systems SKU: 1SZ-87450 (0)

$285.00 /each

In Stock — get it by Sun, Aug 9

Shipping charges may apply
Usually ships within 3 days
Restocking fees may apply

Can't find the exact part? Request it and we'll source it for you.

Request Part

Product Highlights

Warranty Manufacturer backed

0 / 5 0 reviews

In Stock Ships fast

Blue Sea Systems Authentic part

Description

Blue Sea Systems SI-ACR Automatic Charging Relay - 12/24V DC 120A

Model: 7610-BSS

Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
Designed for 12 or 24 volt systems
12/24 volt auto ranging voltage input
Hermetically sealed contacts/vaporproof
Ignition protected-safe for installation aboard gasoline powered boats
Supports high-output alternators up to 120 Amperes
Dual sensing

Automatically combines batteries during charging, isolates batteries when discharging and when starting engines

SI-ACR automatically combines batteries during charging, isolates batteries when discharging and when starting engines. The Dual Circuit PlusTM Battery Switch simplifies the switching of two batteries to OFF or ON while still providing battery isolation between the engine and auxiliary battery. The Combine function can be used to parallel the batteries in the event of a low engine battery.

Specifications
Nominal Voltage

12V DC 24V DC
Start Isolation	Yes
Amperage Operating Current	175mA (combined) 15mA (open)
Terminal Stud Torque	140 in-lb (15.82 Nm)
Continuous Rating	120A
Intermittent Rating	210A (5 min)
Cable Size to Meet Ratings	1/0 AWG
Stud Material	Tinned Copper
Terminal Ring Diameter Clearance	1.12in (28.45 mm)
Terminal Stud Length	0.875in (22.23 mm)
Terminal Stud Size	3/8 - 16 (M10)
