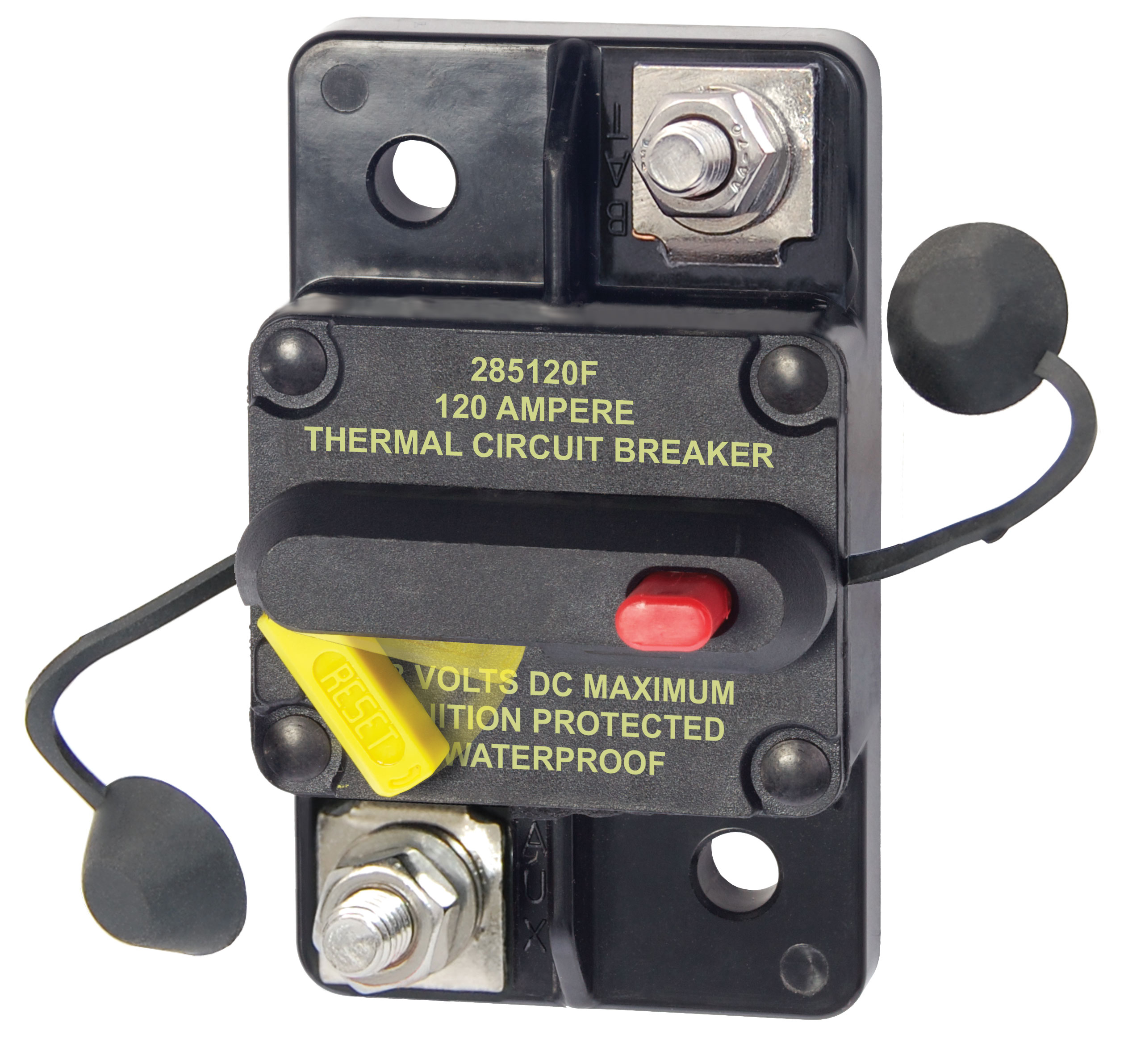

Blue Sea 7188-BSS 285-Series 120 Amp Circuit Breaker Surface Mount
$69.99
/each
In Stock
— get it by Fri, Aug 7
- Shipping charges may apply
- Usually ships within 3 days
- Restocking fees may apply
Can't find the exact part? Request it and we'll source it for you.
Product Highlights
Warranty
Manufacturer backed
0 / 5
0 reviews
In Stock
Ships fast
Blue Sea Systems
Authentic part
Description
Blue Sea Systems 285-Series Circuit Breaker - Surface Mount 120A
Model: 7188-BSS- Drop in replacement for 185-Series Circuit Breakers
- Visible reset lever shows open condition
- Ignition protected - Safe for installation aboard gasoline powered boats
- Meets SAE J1171 external ignition protection requirements
- Weather Resistant
- Combines switching and circuit breaker function into one unit*
- Trip Free" - cannot be held closed after trip
* Do not use as a switch where high inrush currents are expected
Specifications| 120A | |
| Maximum Voltage | 48V DC |
| Mounting | Surface Mount |
| Circuit Breaker Type | Thermally responsive Bi-metal blade |
| Terminal Stud Torque | 50 in-lb (5.65 Nm) |
| Interrupt Capacity | 3000A @ 48V |
| Minimum Operating Temperature | -40 deg C |
| Maximum Operating Temperature | 85 deg C |
| Circuit Breaker Class | Type III - switchable/manual reset - trip free |
| Terminal Stud | M6 (accepts 1/4 in Ring Terminal) |
Specs
- Brand
- Blue Sea Systems
- SKU
- YES-50998
- Category
- Circuit Breakers
- Weight
- 0.5 lbs
- Dimensions
- 5.0 x 4.0 x 2.0
- Price
- $69.99
- Availability
- In stock
- Rating
- 0 / 5.0
